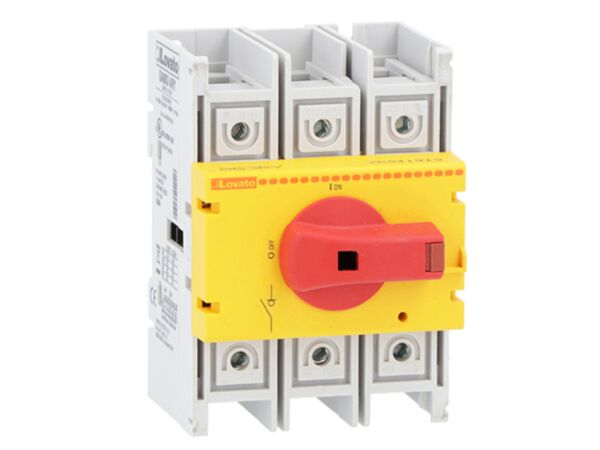

GA160ARY - 3P SWITCH 160A-DIRECT/DOOR COUPLING RED/YELLOW

Why Choose the GA160ARY?

Engineered for reliable isolation, the Lovato GA160ARY switch disconnector (SKU: GA160ARY) delivers three-pole AC switching with a 160 A Ith. This direct operating version features a high-visibility red handle on a yellow front for safe, intuitive operation. Suitable for panel or 35 mm DIN rail installation, it supports conductor sections from 4 to 70 mm² and provides IP20 frontal protection.

Built on the GA series platform, it offers robust insulation performance with Ui 1000 V and Uimp 8 kV. With 1250 A making and 1000 A breaking capacity at AC23A 400 V, and an electrical life of 30,000 cycles (AC21A), it meets UL98 and IEC/EN 60947-3 requirements. A dependable choice for isolating motors, feeders and control circuits.

Key Benefits

• 160 A Ith ensures dependable AC isolation.
• Three-pole configuration suits three-phase distribution and machinery.
• Direct operating red handle with yellow front improves visibility and safety.
• Screw or 35 mm DIN rail mounting simplifies panel integration.
• IP20 frontal protection enhances operator safety during switching.
• Ui 1000 V and Uimp 8 kV support robust insulation performance.
• Wide 4–70 mm² conductor range enables straightforward wiring.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 160 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 30000 A
• Operating current Ie AC21A 500 V: 30000 A
• Operating current Ie AC21A 690 V: 30000 A
• Operating current Ie AC22A 400 V: 30000 A
• Operating current Ie AC22A 500 V: 30000 A
• Operating current Ie AC22A 690 V: 30000 A
• Operating current Ie AC23A 400 V: 30000 A
• Operating current Ie AC23A 500 V: 30000 A
• Operating current Ie AC23A 690 V: 30000 A
• Power dissipation per pole (max): 12 W
• Rated operational power AC23A 400 V: 30000 kW
• Rated operational power AC23A 690 V: 30000 kW
• Conditional short-circuit current (rms): 30000 kA
• Short-circuit protection fuse: 30000
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: 54 to +55 °C
• Storage temperature: +55 to +70 °C
• IP degree (frontal): IP20

What’s Included

• Lovato GA160ARY 3-pole switch disconnector unit
• Integrated direct operating red handle with yellow front
• User installation and safety information
• Manufacturer datasheet

Applications

• Main and maintenance isolation in industrial control panels
• Three-phase machinery and motor circuit disconnection
• Distribution boards and feeder isolation points
• Lock-off points for safe service and inspection

Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate the supply before work and follow the manufacturer’s instructions and applicable standards.
