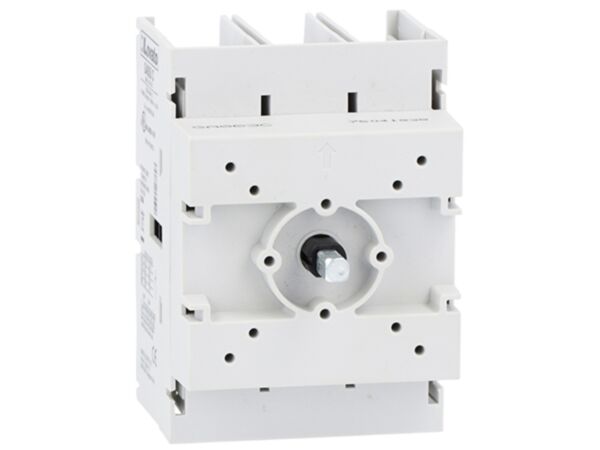

GA100C - 3P SWITCH 100A-DOOR MOUNTING

Why Choose the GA100C?

Lovato GA100C is a robust three-pole switch disconnector for reliable AC isolation in door-mount panels. Rated at 100 A (Ith) and designed for AC operation, the GA100C provides Ui 1000 V and Uimp 8 kV performance with IP20 frontal protection. It supports AC21A, AC22A and AC23A duty categories up to 100 A, conforming to IEC/EN 60947 and UL98 requirements.

Engineered for demanding service, it offers 30,000 mechanical cycles and 30,000 electrical cycles (AC21A), with making 1250 A and breaking 1000 A at AC23A 400 V. Conditional short-circuit current is 50 kA with gG100 fuse. Terminals accept 4 to 70 mm² conductors, tightened to 5 to 6 Nm. Operates from -25 to +55 °C, up to 3000 m altitude, Pollution Degree 3.

Key Benefits

• Door-mount design simplifies panel integration with front access and IP20 frontal protection.
• Three-pole AC isolation with 100 A Ith for dependable disconnection.
• High insulation ratings: Ui 1000 V and impulse withstand Uimp 8 kV.
• Strong AC23A performance; making 1250 A and breaking 1000 A at 400 V.
• Rated operational power up to 55 kW at AC23A 400 V.
• Broad environmental range: -25 to +55 °C and altitude up to 3000 m.
• Long service life with 30,000 mechanical and electrical cycles (AC21A).
• Supports AC21A, AC22A and AC23A duty categories for varied loads.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA100C switch disconnector (door-mount, 3-pole, 100 A)
• Installation instructions
• Product datasheet (downloadable)
• Protective packaging for transit

Applications

• AC circuit isolation and switching in industrial control panels
• Door-mounted main isolator for control and distribution assemblies
• Motor and load disconnection under AC23A duty categories
• General-purpose three-pole switching up to 100 A AC

Safety note: Installation and operation must be performed by qualified personnel. Always isolate power before work, use appropriate gG100 fuse protection, and observe the stated ratings and applicable standards.
