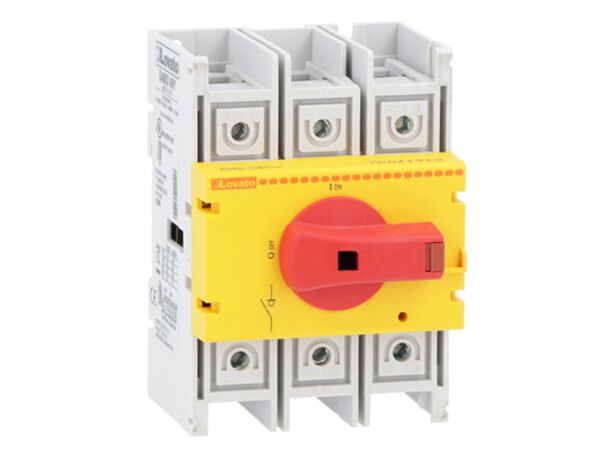

GA100ARY - 3P SWITCH 100A-DIRECT/DOOR COUPLING RED/YELLOW

Why Choose the GA100ARY?

The Lovato GA100ARY is a three‑pole switch disconnector designed for reliable isolation in AC systems. This direct operating version features a high‑visibility yellow front with a red handle, supporting quick on/off identification. Rated at 100 A Ith and built to UL98 and IEC/EN 60947‑3 standards, SKU GA100ARY delivers dependable performance for panel builders, OEMs and maintenance teams mounting on plate or 35 mm DIN rail.

Engineered for durability and safety, the GA family provides strong dielectric performance with Ui 1000 V and Uimp 8 kV. The GA100ARY offers IP20 frontal protection, low 4 W per pole dissipation, and secure terminations with 5–6 Nm torque for 4–70 mm² conductors. Backed by sustainability certification and IEC/EN 60947‑1 conformity, it suits new builds and retrofits where compact, dependable three‑pole isolation is essential.

Key Benefits

• High‑visibility red handle with yellow front aids rapid status identification.
• Three‑pole AC isolation compliant with IEC/EN 60947‑3 and UL98 standards.
• 100 A Ith rating for robust industrial switching and isolation duties.
• Ui 1000 V and Uimp 8 kV support strong dielectric performance.
• Mount on 35 mm DIN rail or screw directly to plate.
• Accepts 4–70 mm² conductors; terminals tighten securely to 5–6 Nm.
• IP20 frontal protection for finger‑safe operator access at the front.
• Low 4 W per pole power dissipation improves thermal performance.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 30000 A
• Operating current Ie AC21A 500 V: 30000 A
• Operating current Ie AC21A 690 V: 30000 A
• Operating current Ie AC22A 400 V: 30000 A
• Operating current Ie AC22A 500 V: 30000 A
• Operating current Ie AC22A 690 V: 30000 A
• Operating current Ie AC23A 400 V: 30000 A
• Operating current Ie AC23A 500 V: 30000 A
• Operating current Ie AC23A 690 V: 30000 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 30000 kW
• Rated operational power AC23A 690 V: 30000 kW
• Conditional short-circuit current (rms): 30000 kA
• Short-circuit protection fuse: 30000
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: 54 to +55 °C
• Storage temperature: +55 to +70 °C
• IP degree (frontal): IP20

What’s Included

• Lovato GA100ARY switch disconnector, direct operating version
• Integrated red handle with yellow front plate
• Installation leaflet

Applications

• Main isolator for industrial control panels and machinery
• Load break and isolation in three‑phase AC distribution circuits
• Motor and heater circuit disconnection for maintenance operations
• Panel or DIN rail installations in OEM and retrofit projects

Safety note: Install and commission only by qualified personnel. Isolate all power sources before work, follow applicable standards, and tighten terminals to the specified torque using suitable conductors and protection.
