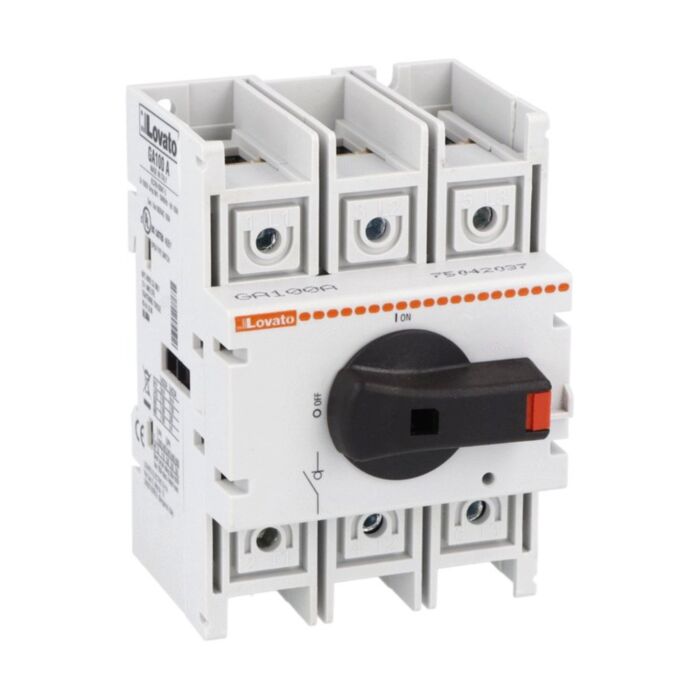

GA100A - 3P SWITCH 100A-DIRECT/DOOR COUPLING

Why Choose the GA100A?

Lovato GA100A is a three‑pole switch disconnector designed for safe AC isolation in industrial panels. This direct operating version delivers 100 A Ith with robust AC21A/AC22A/AC23A performance across common voltages. Rated to 1000 V Ui and 8 kV Uimp, the GA100A mounts on a 35 mm DIN rail or screws to a plate, and conforms to IEC/EN 60947‑3, IEC/EN 60947‑1, UL98 and CSA C22.2 n°4.

With AC23A ratings up to 100 A at 400 V and 55 kW, the GA100A handles demanding load switching; at 500 V it is 80 A, and 690 V 47 A. It offers 50 kA conditional short‑circuit current, IP20 frontal protection, and 30,000-cycle mechanical and electrical life. Terminals accept 4–70 mm² conductors, tightened to 5–6 Nm. Operating range −25 to +55 °C, up to 3000 m altitude.

Key Benefits

• Three-pole AC isolation with direct operating mechanism for reliable control.
• 100 A Ith and strong AC21A/AC22A/AC23A performance across voltages.
• Rated insulation 1000 V Ui and 8 kV impulse withstand.
• High endurance: 30,000-cycle mechanical and electrical life.
• Compact IP20 frontal protection for safer panel integration.
• Flexible mounting: screw on plate or 35 mm DIN rail.
• Handles demanding loads: up to 55 kW at 400 V AC23A.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 100 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 100 A
• Operating current Ie AC21A 500 V: 100 A
• Operating current Ie AC21A 690 V: 100 A
• Operating current Ie AC22A 400 V: 100 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 100 A
• Operating current Ie AC23A 500 V: 80 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 4 W
• Rated operational power AC23A 400 V: 55 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG100
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA100A three-pole switch disconnector (direct operating version)
• Installation and safety instructions
• Product datasheet

Applications

• Main power isolation in industrial control panels and switchboards.
• Motor and load switching up to AC23A 400 V 55 kW.
• OEM machinery and equipment requiring UL98 and IEC/EN 60947-3 compliance.
• Maintenance isolation and switching in distribution circuits.

Safety note: Install and commission only by qualified electricians. Always isolate the supply before work, follow IEC/EN 60947 and UL98 requirements, and protect the circuit with the specified gG100 fuse to achieve the stated conditional short‑circuit rating.
