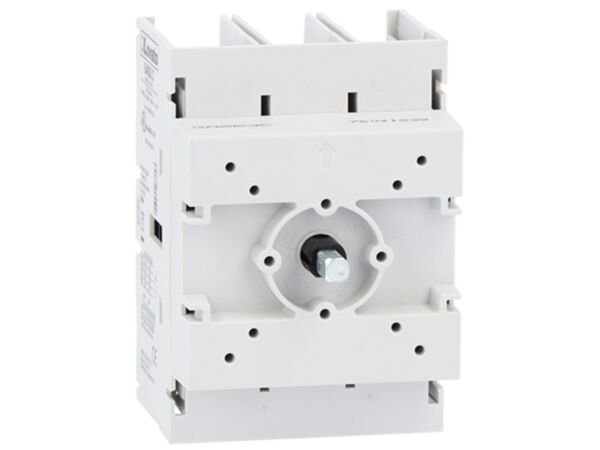

GA080C - 3P SWITCH 80A-DOOR MOUNTING

Why Choose the GA080C?

Designed for dependable isolation in control panels, the Lovato GA080C is a three‑pole switch disconnector, door‑mount version, rated 80 A for AC systems. Part of the GA series, it offers a front IP20 solution with robust thermal rating and straightforward panel integration. With a conventional free‑air thermal current Ith of 80 A and high endurance, it suits a wide range of industrial switching duties.

Rated Ui 1000 V with 8 kV impulse withstand, this GA series switch disconnector delivers 80 A at AC21A 400/500/690 V and 80 A at AC22A 400/500 V, with 47 A at AC22A 690 V; AC23A is 80/63/47 A at 400/500/690 V. Conditional short‑circuit current is 50 kA with gG80 fuse. Terminals accept 4–70 mm² conductors tightened to 5–6 Nm, and operation spans −25 to +55 °C.

Key Benefits

• Three-pole, door-mount design streamlines panel isolation and integration.
• 80 A Ith with AC23A up to 80 A at 400 V.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Strong short-circuit performance: 50 kA with gG80 fuse.
• Long endurance: 30,000 mechanical and AC21A electrical cycles.
• Safe operation with frontal IP20 touch protection.
• Wide 4–70 mm² terminals and 5–6 Nm tightening torque.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• GA080C switch disconnector (door-mount version)
• Manufacturer product datasheet (downloadable)
• Protective packaging for transit

Applications

• Industrial control panels requiring reliable main isolation
• Motor and load disconnection within AC23A ratings
• Power distribution and machine emergency off circuits
• Maintenance isolation for equipment up to 1000 V insulation level

Safety note: Install and commission only by qualified personnel. Always isolate the supply before work, use the specified gG80 fuse, and follow applicable standards and manufacturer documentation. Observe altitude, temperature and torque limits.
