GA080ARY - 3P SWITCH 80A-DIRECT/DOOR COUPLING RED/YELLOW

Why Choose the GA080ARY?

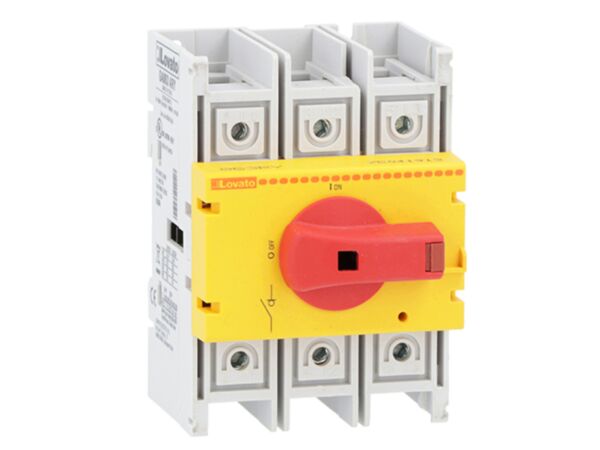

Engineered for reliable isolation in AC circuits, the Lovato GA080ARY is a three‑pole switch disconnector with a direct‑operating yellow front and red handle for clear status indication. Rated Ith 80 A and designed for fast panel integration, SKU GA080ARY supports screw mounting on plate or standard 35 mm DIN rail, making it a robust choice for control panels and distribution assemblies.

Built to international standards, this GA series device meets IEC/EN 60947-3 and 60947-1 with UL98 and CSA C22.2 n°4 recognition. An IP20 frontal degree enhances touch safety, while terminals accept 4 to 70 mm² conductors tightened to 5–6 Nm. With low 2.6 W maximum power dissipation per pole, it delivers efficient performance for machinery isolation and maintenance switching.

Key Benefits

• Three-pole AC isolation for dependable circuit disconnection.
• 80 A Ith rating for robust industrial duty.
• Direct operation with yellow front and red handle visibility.
• Mounts on 35 mm DIN rail or screws to plate.
• IP20 frontal protection improves operator safety.
• Accepts 4–70 mm² conductors for flexible wiring.
• Secure terminations with 5–6 Nm tightening torque.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 30000 A
• Operating current Ie AC21A 500 V: 30000 A
• Operating current Ie AC21A 690 V: 30000 A
• Operating current Ie AC22A 400 V: 30000 A
• Operating current Ie AC22A 500 V: 30000 A
• Operating current Ie AC22A 690 V: 30000 A
• Operating current Ie AC23A 400 V: 30000 A
• Operating current Ie AC23A 500 V: 30000 A
• Operating current Ie AC23A 690 V: 30000 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 30000 kW
• Rated operational power AC23A 690 V: 30000 kW
• Conditional short-circuit current (rms): 30000 kA
• Short-circuit protection fuse: 30000
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: 54 to +55 °C
• Storage temperature: +55 to +70 °C
• IP degree (frontal): IP20

What’s Included

• Lovato GA080ARY 3-pole switch disconnector
• Integrated direct-operating yellow front with red handle
• Manufacturer documentation (online datasheet)

Applications

• Industrial control panels and distribution assemblies
• Machinery isolation and maintenance switching
• Building services switchboards and plant rooms
• General AC circuit disconnection and isolation

Safety note: Installation and maintenance must be performed by qualified personnel. Always isolate the power supply before work and follow applicable electrical standards and site safety procedures.
