GA080A - 3P SWITCH 80A-DIRECT/DOOR COUPLING

Why Choose the GA080A?

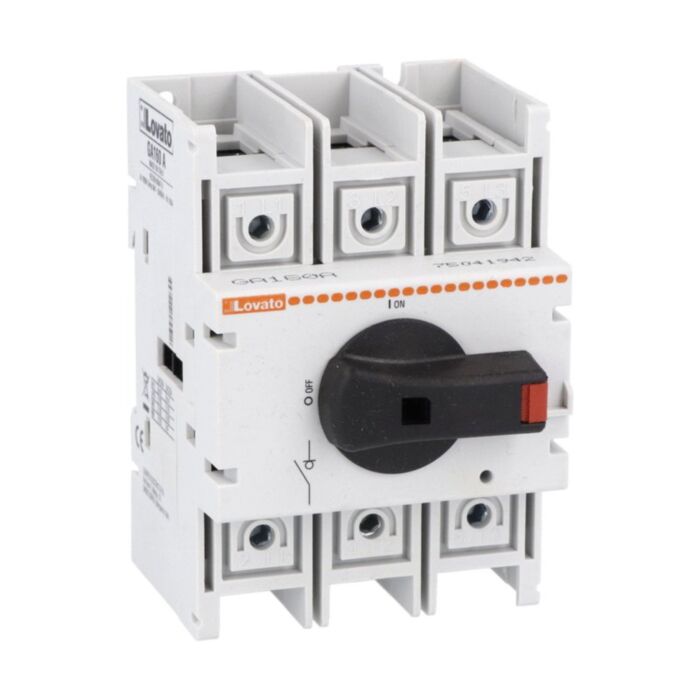

Designed for reliable isolation and load switching, the Lovato GA080A three-pole switch disconnector delivers 80 A performance for AC circuits. This direct operating version (SKU GA080A) combines robust build with ease of installation on a plate or 35mm DIN rail. With Ui 1000 V and Uimp 8 kV, it supports demanding industrial panels requiring safe disconnection and clear compliance with international standards.

Engineered for longevity with 30,000-cycle mechanical and electrical life (AC21A), the GA080A offers AC21A/AC22A/AC23A switching up to 690 V, including 80 A AC23A at 400 V and 45 kW rated operational power. IP20 frontal protection, -25 to +55 °C operation, and 4–70 mm² terminals (5–6 Nm) simplify panel integration. Conditional short-circuit current is 50 kA with gG80 fuse. Conforms to IEC/EN 60947-3/-1, UL98, CSA.

Key Benefits

• Three-pole AC isolation with 80 A Ith for dependable disconnection.
• High dielectric strength: Ui 1000 V and Uimp 8 kV ratings.
• Versatile AC21A/AC22A/AC23A switching up to 690 V applications.
• Flexible mounting on plate or standard 35mm DIN rail.
• Long service life, 30,000 mechanical and AC21A electrical cycles.
• Secure terminations for 4–70 mm² conductors, 5–6 Nm torque.
• Standards compliant to IEC/EN 60947 series, UL98 and CSA.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 80 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 80 A
• Operating current Ie AC21A 500 V: 80 A
• Operating current Ie AC21A 690 V: 80 A
• Operating current Ie AC22A 400 V: 80 A
• Operating current Ie AC22A 500 V: 80 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 80 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 2.6 W
• Rated operational power AC23A 400 V: 45 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG80
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA080A three-pole switch disconnector (direct operating version)
• Downloadable product datasheet

Applications

• Main switch disconnector for industrial AC distribution panels.
• Motor and resistive load switching per AC23A/AC21A ratings.
• Control panel isolation on plate or 35mm DIN rail mounting.
• Equipment maintenance isolation with IP20 frontal protection.

Safety note: Install and service only by qualified personnel. Isolate power before work, use the specified gG80 fuse, and adhere to all stated ratings, torque and environmental limits.
