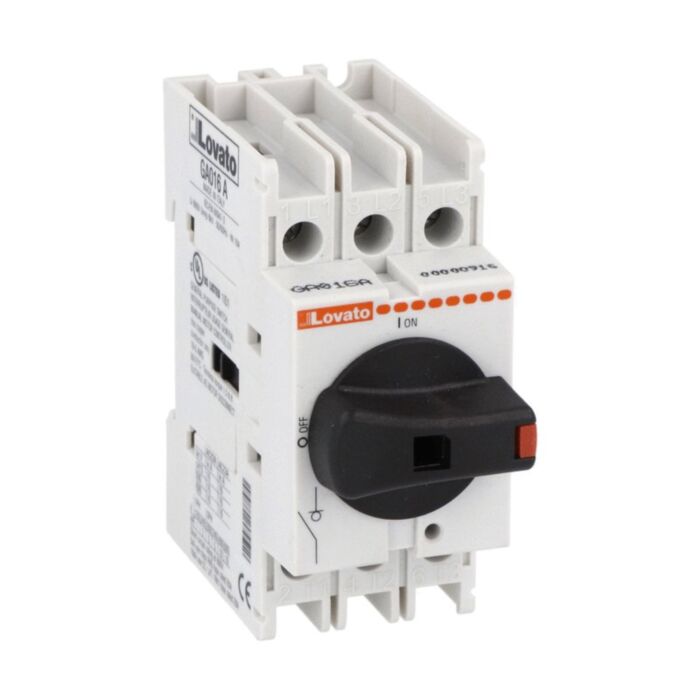

GA063SA - 3P SWITCH 63A-DIRECT/DOOR COUPLING

Why Choose the GA063SA?

Lovato’s GA063SA is a three-pole switch disconnector designed for reliable AC isolation in control panels and machinery. With Ith 63 A and Ui 1000 V, it delivers dependable performance across AC21A, AC22A and AC23A duties. The direct operating version mounts on a plate or 35 mm DIN rail for flexible installation. SKU GA063SA meets IEC/EN 60947 standards with UL and CSA recognition.

Designed for safety and longevity, the GA063SA offers IP20 frontal protection, mechanical life of 100,000 cycles and electrical life up to 15,000 cycles (AC21A). Rated Uimp 8 kV and conditional short-circuit current 10 kA with gG63 fuse, it withstands demanding environments. Terminals accept 0.75–16 mm² conductors with 1.8–2 Nm torque. Operating temperature −25 to +55 °C and installation up to 3000 m, pollution degree 3.

Key Benefits

• Three-pole, direct operating design for straightforward line isolation.
• AC21A general switching up to 63 A across 400–690 V.
• Robust AC22A and AC23A performance up to 45 A at 400 V.
• High insulation: Ui 1000 V and impulse withstand Uimp 8 kV.
• Safety-focused IP20 frontal protection with pollution degree 3 rating.
• Flexible mounting on plate or standard 35 mm DIN rail.
• Durable build with 100,000 mechanical and 15,000 electrical cycles.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 45 A
• Operating current Ie AC22A 500 V: 45 A
• Operating current Ie AC22A 690 V: 45 A
• Operating current Ie AC23A 400 V: 45 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 2.9 W
• Rated operational power AC23A 400 V: 22 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 450 A
• Breaking capacity AC23A 400 V: 360 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 15000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA063SA 3-pole switch disconnector (direct operating)
• Installation instruction leaflet
• Manufacturer datasheet (download link)

Applications

• AC isolation and switching in control panels and distribution boards.
• Motor and load disconnection under AC23A duty up to 45 A at 400 V.
• General switching of resistive loads (AC21A) up to 63 A at 400–690 V.
• Machinery and equipment maintenance isolation with front IP20 protection.

Safety note: Installation must be performed by qualified personnel. Isolate the supply before work, use a gG63 fuse for short-circuit protection, and operate strictly within the stated duty categories and environmental limits.
