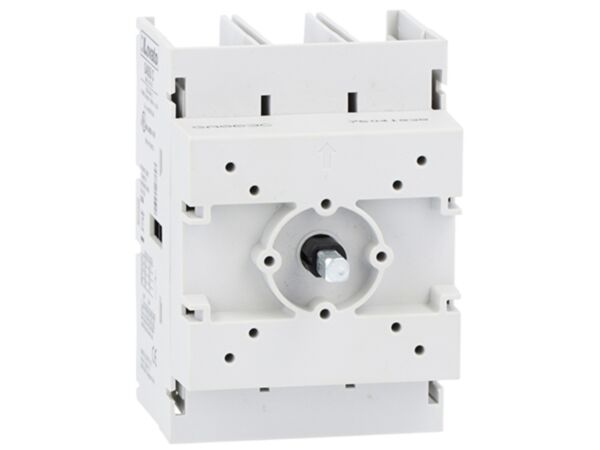

GA063C - 3P SWITCH 63A-DOOR MOUNTING

Why Choose the GA063C?

Lovato’s GA063C three‑pole switch disconnector provides dependable AC isolation for control panels and machinery. The door‑mount version delivers 63 A Ith, Ui 1000 V and 8 kV Uimp, with IEC/EN 60947‑3 and UL98 compliance. SKU GA063C offers IP20 frontal protection, 30,000‑cycle mechanical and AC21A electrical life, plus AC‑23A 400 V making 1250 A and breaking 1000 A.

Rated for AC‑21A/‑22A/‑23A duties, it carries 63 A at 400–500 V and 47 A at 690 V where specified. Conditional short‑circuit current is 50 kA with gG63 fuse. Terminals accept 4–70 mm² conductors and tighten to 5–6 Nm. Operates from −25 to +55 °C up to 3000 m altitude, Pollution Degree 3, with low 1.6 W max power loss per pole.

Key Benefits

• Door-mount design simplifies panel layout and operator access.
• 63 A ratings across AC-21/22/23 duties up to 690 V.
• Ui 1000 V and Uimp 8 kV ensure insulation robustness.
• 50 kA conditional short-circuit when protected by gG63 fuse.
• IP20 frontal protection enhances safety at the operator interface.
• Wide 4–70 mm² terminals with 5–6 Nm tightening torque.
• Long service life: 30,000 mechanical and AC21A electrical cycles.
• Low 1.6 W power dissipation per pole reduces enclosure heat.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 63 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 63 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 1.6 W
• Rated operational power AC23A 400 V: 30 kW
• Rated operational power AC23A 690 V: 30 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA063C switch disconnector (door-mount version)
• Installation and safety instructions
• Manufacturer product datasheet (downloadable)

Applications

• Main isolator for industrial control panels
• AC circuit isolation up to 690 V per ratings
• Motor and load switching with AC-23A duty
• Maintenance disconnect for machinery and distribution boards

Safety note: Install and commission only by qualified personnel. Isolate supplies before work, use the specified gG63 short-circuit protection, and observe IEC/EN 60947 requirements, torque and conductor limits.
