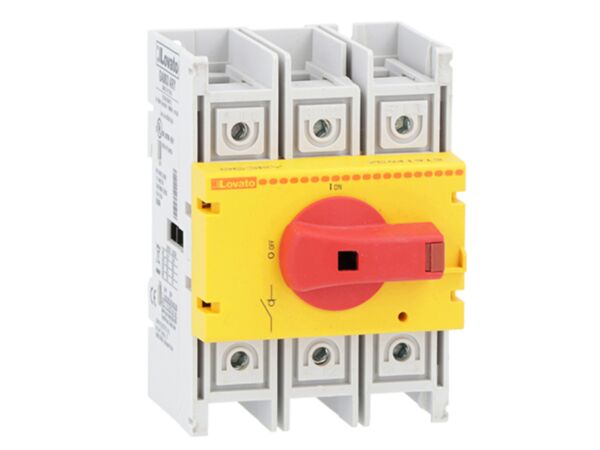

GA063ARY - 3P SWITCH 63A-DIRECT/DOOR COUPLING RED/YELLOW

Why Choose the GA063ARY?

Engineered by Lovato, the GA063ARY is a robust 3-pole switch disconnector for dependable AC circuit isolation. The direct operating design features a highly visible red handle with yellow front, supporting confident operation on control panels and machinery. Rated at 63 A Ith and built for panel or 35 mm DIN rail mounting, SKU GA063ARY streamlines installation while meeting demanding industrial requirements.

With a rated insulation voltage of 1000 V and 8 kV impulse withstand, this switch disconnector delivers secure isolation performance. IP20 frontal protection, a conductor range of 4 to 70 mm² and 5 to 6 Nm terminal torque simplify safe wiring. Designed for longevity with 30,000 AC21A electrical cycles, it conforms to IEC/EN 60947-3 and 60947-1 and is recognised under UL98, UL60947-4-1 and CSA C22.2 n°60947-4-1.

Key Benefits

• Reliable 3-pole AC isolation for control panels and machinery.
• 63 A Ith rating supports medium-duty industrial circuits.
• Direct front operation with red handle/yellow front enhances visibility.
• Flexible mounting on screw-fixed plate or 35 mm DIN rail.
• High insulation: Ui 1000 V and Uimp 8 kV for robust performance.
• IP20 frontal protection for touch-safe operation in enclosures.
• Wide 4 to 70 mm² conductor range simplifies panel wiring.
• Compliant with IEC/EN 60947-3 and UL98 for assured conformity.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 30000 A
• Operating current Ie AC21A 500 V: 30000 A
• Operating current Ie AC21A 690 V: 30000 A
• Operating current Ie AC22A 400 V: 30000 A
• Operating current Ie AC22A 500 V: 30000 A
• Operating current Ie AC22A 690 V: 30000 A
• Operating current Ie AC23A 400 V: 30000 A
• Operating current Ie AC23A 500 V: 30000 A
• Operating current Ie AC23A 690 V: 30000 A
• Power dissipation per pole (max): 1.6 W
• Rated operational power AC23A 400 V: 30000 kW
• Rated operational power AC23A 690 V: 30000 kW
• Conditional short-circuit current (rms): 30000 kA
• Short-circuit protection fuse: 30000
• Making capacity AC23A 400 V: 1250 A
• Breaking capacity AC23A 400 V: 1000 A
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: 54 to +55 °C
• Storage temperature: +55 to +70 °C
• IP degree (frontal): IP20

What’s Included

• Lovato GA063ARY 3-pole switch disconnector (direct operating)
• Factory-fitted red handle with yellow frontal
• Manufacturer documentation (downloadable datasheet)

Applications

• Main isolator in industrial control panels and distribution boards
• Machinery maintenance isolation for safe service access
• OEM panel building where compact, visible disconnection is required
• HVAC, pumping and process equipment circuit isolation

Safety note: Install and commission only by qualified personnel. Isolate the supply before work, tighten terminals to 5 to 6 Nm, and observe all stated ratings and standards in the documentation.
