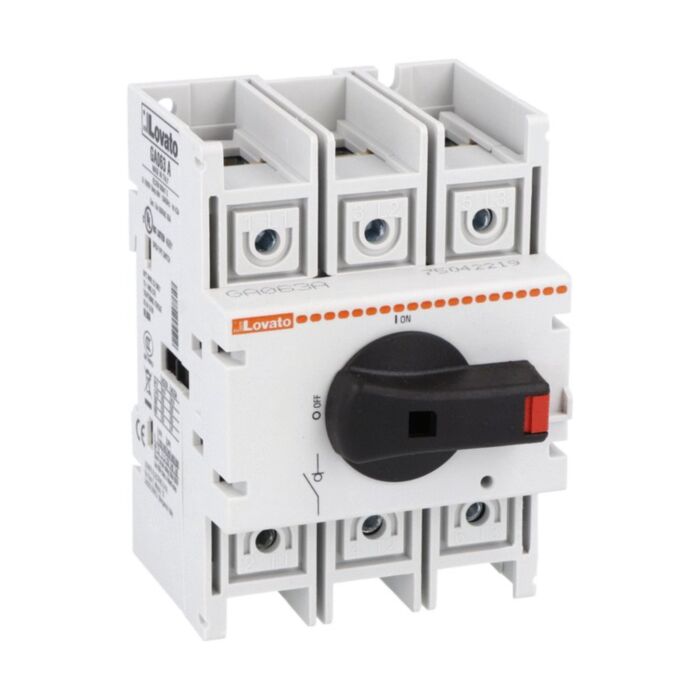

GA063A - 3P SWITCH 63A-DIRECT/DOOR COUPLING

Why Choose the GA063A?

The Lovato GA063A is a three‑pole switch disconnector engineered for dependable AC isolation in panels and machinery. With 63 A Ith and direct operation, GA063A enables confident on‑load switching for AC21, AC22 and AC23 duties. Rated Ui 1000 V with 8 kV impulse withstand, it installs on 35 mm DIN rail or screws to a mounting plate, supporting fast, flexible integration in industrial control systems.

Built for longevity and compliance, this GA series isolator meets IEC/EN 60947‑3, IEC/EN 60947‑1, UL98 and CSA C22.2 n°4. It offers IP20 frontal protection, mechanical and AC21A electrical life of 30,000 cycles, and a conditional short‑circuit rating of 50 kA with gG63 fusing. Wide -25 to +55 °C operating range, 4–70 mm² conductors and 5–6 Nm terminals simplify robust, code‑aligned installations.

Key Benefits

• 63 A Ith with AC21/AC22/AC23 ratings for reliable on-load switching.
• High insulation: Ui 1000 V and 8 kV impulse withstand.
• Flexible mounting on 35 mm DIN rail or screw-fixed plate.
• Robust performance from -25 to +55 °C operating temperature range.
• IP20 frontal protection for safer interaction at the device face.
• Long service life: 30,000 mechanical and AC21A electrical cycles.
• Standards compliant: IEC/EN 60947-3, UL98, CSA C22.2 n°4.
• Conditional short-circuit withstand 50 kA when protected by gG63 fuses.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 63 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 63 A
• Operating current Ie AC21A 500 V: 63 A
• Operating current Ie AC21A 690 V: 63 A
• Operating current Ie AC22A 400 V: 63 A
• Operating current Ie AC22A 500 V: 63 A
• Operating current Ie AC22A 690 V: 47 A
• Operating current Ie AC23A 400 V: 63 A
• Operating current Ie AC23A 500 V: 63 A
• Operating current Ie AC23A 690 V: 47 A
• Power dissipation per pole (max): 1.6 W
• Rated operational power AC23A 400 V: 30 kW
• Rated operational power AC23A 690 V: 45 kW
• Conditional short-circuit current (rms): 50 kA
• Short-circuit protection fuse: gG63
• Making capacity AC23A 400 V: 630 A
• Breaking capacity AC23A 400 V: 504 A
• Mechanical life: 30000 cycles
• Electrical life AC21A: 30000 cycles
• Terminal tightening torque: 5 to 6 Nm
• Weight: 388 g
• Conductor section (IEC): 4 to 70 mm²
• Operating temperature: -25 to +55 °C
• Storage temperature: -40 to +70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA063A three-pole switch disconnector (direct operating version)
• Installation/quick start leaflet
• Manufacturer datasheet (downloadable)

Applications

• Main and emergency isolation in industrial control panels
• Switching of mixed resistive and inductive loads within AC23A ratings
• Distribution boards and machinery feeders up to 63 A Ith
• HVAC, pumps and motor circuits requiring dependable disconnection
• On-panel or DIN rail mounted isolator for OEM equipment

Safety note: Install and commission only by qualified personnel. Ensure correct gG63 fusing, torque terminals to 5–6 Nm, and isolate all power before any work. Observe IEC/EN and UL installation practices.
