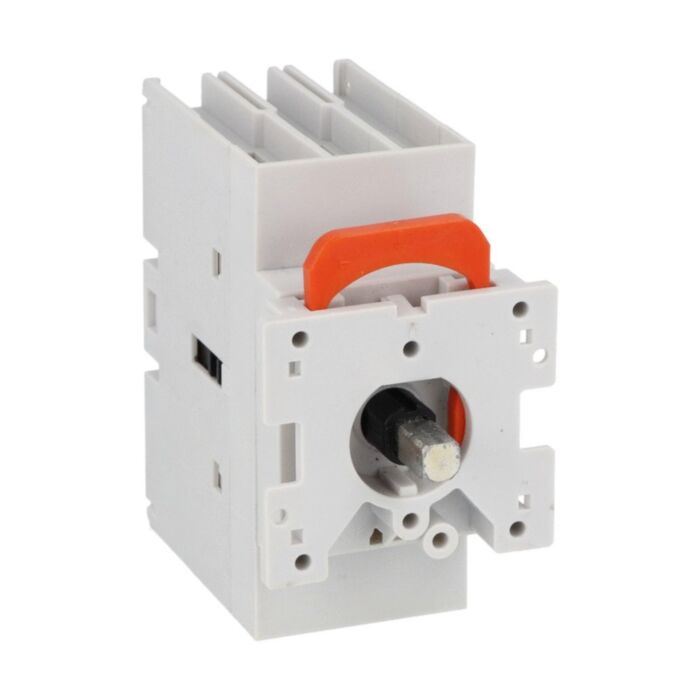

GA040C - 3P SWITCH 40A-DOOR MOUNTING

Why Choose the GA040C?

Designed for reliable isolation in industrial panels, the Lovato GA040C three‑pole switch disconnector delivers 40 A AC performance in a door‑mount format. With a rated insulation voltage Ui of 1000 V and 8 kV impulse withstand, the GA040C supports AC21A and AC22A duties up to 690 V, and AC23A operation including 40 A at 400 V, with an IP20 frontal protection degree.

Built for endurance, it offers 100,000 mechanical cycles and 100,000 AC21A electrical cycles, plus 10 kA conditional short‑circuit current with gG40 fuse protection. A wide −25 to 55 °C operating range, 0.75–16 mm² conductor capacity and 1.8–2 Nm terminal torque aid dependable installation. Conforms to IEC/EN 60947‑3 and 60947‑1, with UL and CSA conformity as stated.

Key Benefits

• Door‑mount version simplifies panel installation and operator access.
• Three‑pole AC switch disconnector with Ith 40 A rating.
• High insulation strength: Ui 1000 V and Uimp 8 kV.
• Versatile duties: AC21A and AC22A 40 A up to 690 V.
• AC23A capability: 40 A at 400 V, 25 A at 500/690 V.
• IP20 frontal protection helps reduce accidental contact with live parts.
• Long life: 100,000 mechanical and AC21A electrical cycles.
• Supports 0.75–16 mm² conductors; terminal torque 1.8–2 Nm.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA040C three‑pole switch disconnector (door‑mount version)
• Installation instructions
• Product datasheet (PDF)

Applications

• Industrial control panels and power distribution boards
• Machinery isolation and maintenance switching
• HVAC, pump and fan AC circuit switching
• OEM equipment requiring door‑mounted disconnection
• General AC circuit isolation up to stated ratings

Safety note: Install and commission only by qualified personnel. Always de‑energise and lock out before work, use the specified gG40 fuse for short‑circuit protection, and follow the stated standards.
