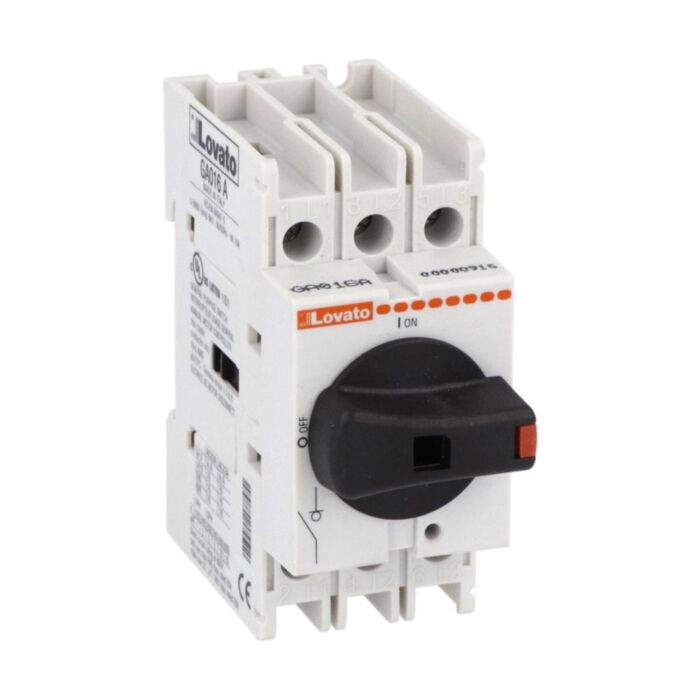

GA040A - 3P SWITCH 40A-DIRECT/DOOR COUPLING

Why Choose the GA040A?

Lovato’s GA040A is a three‑pole switch disconnector designed for reliable isolation in AC systems. This direct‑operated, 40 A device delivers robust performance with a 1000 V rated insulation voltage and 8 kV impulse withstand. The compact unit mounts by screw on plate or on a 35 mm DIN rail, offering flexible installation. SKU GA040A meets IEC/EN 60947-3 and 60947-1, plus UL60947-4-1 and CSA C22.2 standards.

Rated for AC21A, AC22A and AC23A duties, the GA040A carries 40 A at 400–690 V in AC21/22, and in AC23A delivers 40 A at 400 V and 25 A at 500–690 V. It offers 18.5 kW (400 V) and 22 kW (690 V) operational power, IP20 frontal protection and 10 kA conditional short‑circuit current with gG40 fuse. With 100,000 mechanical/electrical cycles, −25 to 55 °C operation and pollution degree 3, it’s built for dependable service.

Key Benefits

• Direct-operated, three‑pole isolation for reliable switching of AC circuits.
• Flexible screw-plate or 35 mm DIN rail installation.
• High insulation strength: Ui 1000 V, Uimp 8 kV.
• Robust short-circuit performance: 10 kA with gG40 fuse.
• Long service life: 100,000 mechanical and electrical cycles.
• IP20 frontal protection and −25 to 55 °C operating range.
• Supports 0.75–16 mm² conductors; torque 1.8–2 Nm.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 40 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 40 A
• Operating current Ie AC21A 500 V: 40 A
• Operating current Ie AC21A 690 V: 40 A
• Operating current Ie AC22A 400 V: 40 A
• Operating current Ie AC22A 500 V: 40 A
• Operating current Ie AC22A 690 V: 40 A
• Operating current Ie AC23A 400 V: 40 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 1 W
• Rated operational power AC23A 400 V: 18.5 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG40
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA040A three‑pole switch disconnector (direct operated)
• Integral operating handle
• Manufacturer documentation (downloadable datasheet)

Applications

• Main and local isolation in industrial control panels
• Load switching for resistive and mixed loads (AC21A/AC22A)
• Motor isolation and switching duties to AC23A ratings
• Power distribution boards and machinery switchboards
• OEM equipment requiring DIN rail mounted isolators

Safety note: Install and commission only by qualified personnel. Isolate all power sources before work, protect with a gG40 fuse, and operate within the stated current, voltage, temperature and altitude limits.
