GA032C - 3P SWITCH 32A-DOOR MOUNTING

Why Choose the GA032C?

Lovato GA032C is a three‑pole switch disconnector for AC applications, engineered for reliable isolation in control and distribution panels. This door‑mount version carries an IEC conventional free‑air thermal current of 32 A, with Ui 1000 V and Uimp 8 kV. Frontal IP20 protection and compliance with IEC/EN 60947 standards support safe, consistent operation across demanding industrial environments.

Rated to AC21A and AC22A 32 A up to 690 V, and AC23A 25 A at 500–690 V, GA delivers assured switching performance. It offers 400 A making and 320 A breaking capacity at AC23A 400 V, with 100,000 mechanical and AC21A electrical cycles. Robust terminals accept 0.75–16 mm² conductors (1.8–2 Nm). Operating from −25 to +55 °C and up to 3000 m altitude, it suits tough sites.

Key Benefits

• Three-pole AC isolation with door-mount convenience for control panels.
• 32 A Ith and robust AC21A/AC22A/AC23A performance up to 690 V.
• High dielectric strength with Ui 1000 V and Uimp 8 kV.
• IP20 frontal protection enhances safety during panel operation and servicing.
• Long service life with 100,000 mechanical and AC21A electrical cycles.
• Wide installation flexibility: 0.75–16 mm² conductors, 1.8–2 Nm torque.
• Certified to IEC/EN 60947 series, plus UL and CSA standards.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 32 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 32 A
• Operating current Ie AC21A 500 V: 32 A
• Operating current Ie AC21A 690 V: 32 A
• Operating current Ie AC22A 400 V: 32 A
• Operating current Ie AC22A 500 V: 32 A
• Operating current Ie AC22A 690 V: 32 A
• Operating current Ie AC23A 400 V: 32 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.6 W
• Rated operational power AC23A 400 V: 15 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG32
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

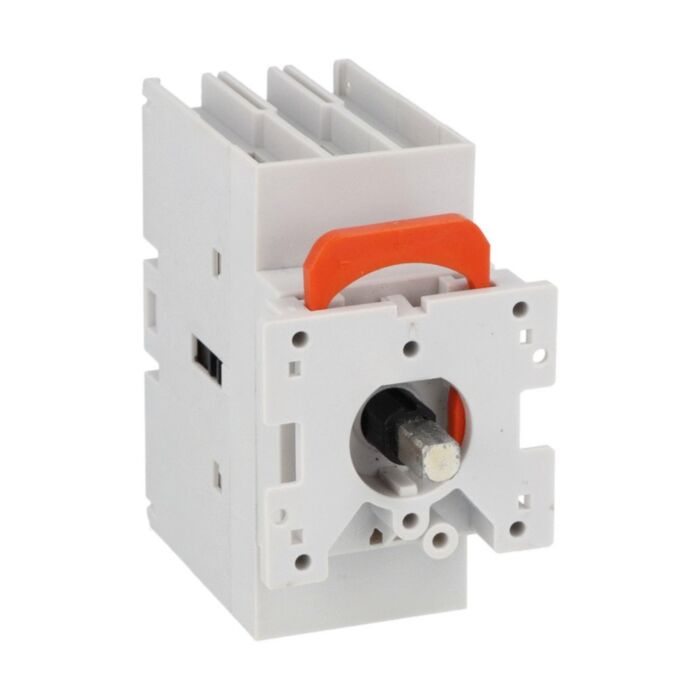

• Lovato GA032C three-pole switch disconnector, door-mount version
• Installation leaflet
• Manufacturer conformity and standards information

Applications

• Main isolation for industrial control and distribution panels up to 32 A.
• Switching and isolating motor circuits within AC23A ratings at 400–690 V.
• Door-mounted disconnection in machinery, HVAC, and pump system enclosures.
• Panel boards requiring three-pole AC switch disconnector functionality and compliance.

Safety note: Install and commission only by qualified personnel. De-energise before work, use gG32 short-circuit protection, and operate within stated ratings, temperature range, and altitude to ensure safe performance.
