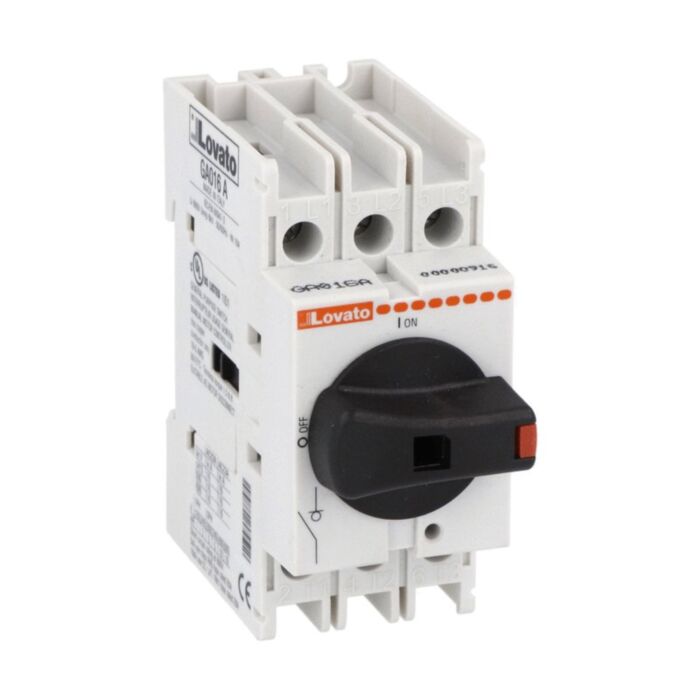

GA025A - 3P SWITCH 25A-DIRECT/DOOR COUPLING

Why Choose the GA025A?

The Lovato GA025A is a three‑pole switch disconnector for direct operation at 25 A, engineered for dependable isolation and load switching in industrial control panels. With Ui 1000 V and Uimp 8 kV, it provides strong dielectric performance. This GA series device mounts on a 35mm DIN rail or screws to a plate, offering IP20 frontal protection and Pollution Degree 3 suitability for demanding environments.

Rated 25 A across AC21A, AC22A and AC23A categories up to 690 V, the GA025A delivers 11 kW at 400 V and 22 kW at 690 V (AC23A). Conditional short‑circuit current is 10 kA with gG25 fuse protection. Terminals accept 0.75–16 mm² conductors at 1.8–2 Nm. Operating range is −25 to +55 °C, storage −40 to +70 °C, and altitude up to 3000 m.

Key Benefits

• Direct operating three-pole isolation with 25 A thermal current.
• High dielectric strength: Ui 1000 V and Uimp 8 kV.
• Rated AC21/AC22/AC23 performance up to 690 V at 25 A.
• Strong making/breaking at AC23A 400 V: 400 A/320 A.
• Flexible installation: screw on plate or 35mm DIN rail.
• IP20 frontal protection with Pollution Degree 3 suitability.
• Long service life: 100000 mechanical and electrical cycles.

Technical Specification

• Product type designation: GA
• Number of poles: 3
• Operating voltage type: AC
• Ith (IEC): 25 A
• Rated insulation voltage Ui (IEC/EN): 1000 V
• Rated impulse withstand voltage Uimp: 8 kV
• Operating current Ie AC21A 400 V: 25 A
• Operating current Ie AC21A 500 V: 25 A
• Operating current Ie AC21A 690 V: 25 A
• Operating current Ie AC22A 400 V: 25 A
• Operating current Ie AC22A 500 V: 25 A
• Operating current Ie AC22A 690 V: 25 A
• Operating current Ie AC23A 400 V: 25 A
• Operating current Ie AC23A 500 V: 25 A
• Operating current Ie AC23A 690 V: 25 A
• Power dissipation per pole (max): 0.4 W
• Rated operational power AC23A 400 V: 11 kW
• Rated operational power AC23A 690 V: 22 kW
• Conditional short-circuit current (rms): 10 kA
• Short-circuit protection fuse: gG25
• Making capacity AC23A 400 V: 400 A
• Breaking capacity AC23A 400 V: 320 A
• Mechanical life: 100000 cycles
• Electrical life AC21A: 100000 cycles
• Terminal tightening torque: 1.8 to 2 Nm
• Conductor section (IEC): 0.75 to 16 mm²
• Operating temperature: -25 to 55 °C
• Storage temperature: -40 to 70 °C
• Max altitude: 3000 m
• IP degree (frontal): IP20
• Pollution degree: 3

What’s Included

• Lovato GA025A three‑pole switch disconnector (direct operating)
• Installation and safety instructions
• Protective packaging for transit

Applications

• Isolation and switching of industrial loads up to 25 A
• Motor and inductive load disconnection within AC23A ratings
• Control panel and machinery main isolator duties
• Distribution boards requiring three‑pole AC isolation
• HVAC and pumping systems with DIN rail or plate mounting

Safety note: Install and operate within the stated ratings and environmental limits. Provide short‑circuit protection with a gG25 fuse and tighten terminals to 1.8–2 Nm; work should be carried out by qualified personnel.
