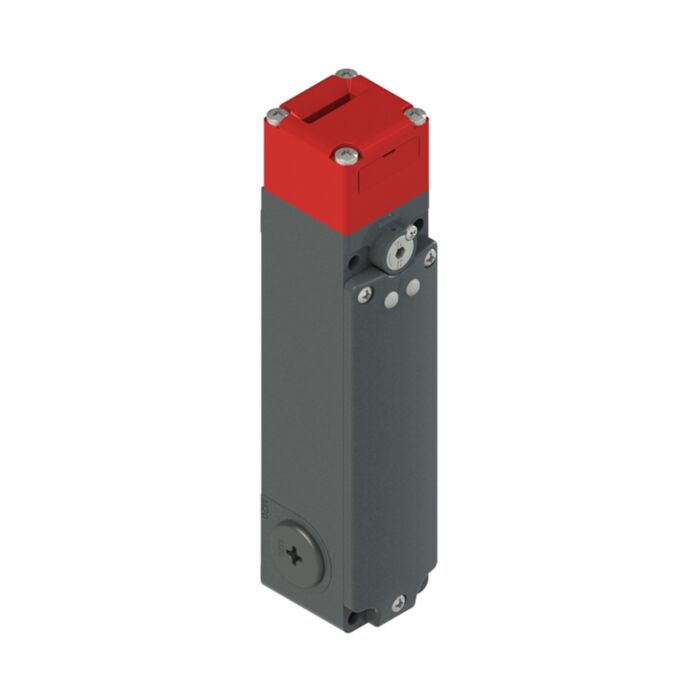

FG 60GD1D5Z Pizzato FG series safety switch with separate actuator with lock

Why Choose the Pizzato FG60GD1D5Z Safety Interlock Switch?

The Pizzato FG60GD1D5Z is a heavy-duty safety interlock switch with solenoid locking, designed for industrial machine guard monitoring and controlled access protection. Part of the dependable Pizzato FG series, this model combines reinforced metal construction, dependable guard locking and positive opening safety contacts for demanding industrial automation environments.

Designed for machine guards, safety gates and hazardous area protection systems, the FG60GD1D5Z features a rotating head housing for flexible installation in confined machinery layouts. The switch operates using a locked actuator with de-energised solenoid principle, helping maintain safe guard locking during power-loss conditions.

This variant operates using a 48 VDC solenoid supply and features a contact arrangement with 2 NC contacts operated by the actuator together with 2 NC contacts operated by the solenoid. This configuration is ideal for high-integrity safety systems requiring monitored guard locking and reliable machine isolation.

Key Advantages

• Heavy-duty safety interlock switch with solenoid lock.
• 48 VDC solenoid operation.
• 2 NC actuator contacts with 2 NC solenoid contacts.
• Positive opening contacts for dependable machine isolation.
• Rotating head for flexible installation orientation.
• Robust metal housing for harsh industrial environments.
• IP67 protection rating against dust and water ingress.
• Designed for industrial machine guards and safety doors.

Key Features

• Pizzato FG series safety switch.
• Solenoid locking mechanism.
• Separate actuator safety interlock design.
• Positive opening contacts compliant with EN 60947-5-1.
• Metal housing with three M20 conduit entries.
• Rotating head design.
• IP67-rated enclosure.
• Locked with de-energised solenoid operation.
• Without LED indication.

Technical Specifications

• Manufacturer: Pizzato Elettrica
• Series: FG Series
• Model: FG60GD1D5Z
• Product type: Safety interlock switch with solenoid
• Housing material: Metal housing
• Protection rating: IP67 according to EN 60529
• Cable entries: 3 × M20
• Supply voltage: 48 VDC
• Working method: Locked actuator with de-energised solenoid
• Contact configuration: 2 NC contacts moved by actuator and 2 NC contacts moved by solenoid
• Positive opening: Yes
• Head type: Rotating head
• LED indication: Without LED
• Actuator supplied: Without actuator
• Holding force: Approx. 2500 N to 2800 N
• Mechanical durability: 1,000,000 operating cycles
• Operating temperature: -25 °C to +60 °C
• Electrical rating: 250 VAC / 5 A
• Standards: EN 60529, EN 60947-5-1, ISO 14119
• Weight: Approx. 1.1 kg

Engineered for Industrial Guard Locking

The Pizzato FG60GD1D5Z is designed for applications where machine guards must remain locked until hazardous movement has safely stopped. Its monitored solenoid locking mechanism helps prevent unintended access to dangerous machinery during operation.

The combination of positive opening contacts, rugged metal construction and industrial safety functionality makes this switch suitable for packaging machinery, conveyor systems, robotic cells and automated manufacturing lines requiring dependable safety integration.

Typical Applications

• Machine safety guard locking.
• Industrial access doors and safety gates.
• Packaging and processing machinery.
• Automated conveyor systems.
• Robotic production cells.
• Hazardous area access control.

Trusted by Industrial Safety Engineers

Pizzato FG series safety interlock switches are trusted worldwide for dependable guard locking, rugged construction and reliable machine safety performance in demanding automation environments.
