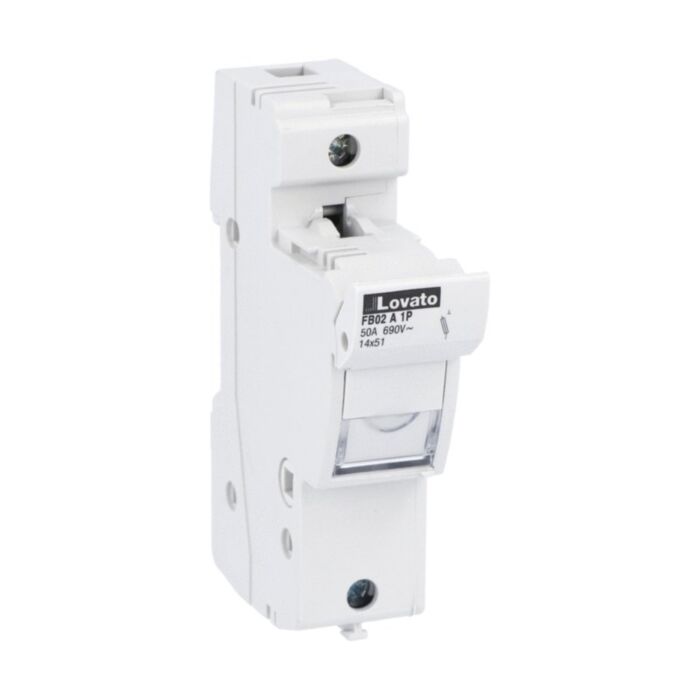

FB02A1P - FUSE HOLDER 1P 14X51
MPN: FB02A1P
Special Price
£12.05
£10.04
Regular Price
£20.08
Why Choose the FB02A1P?
The Lovato FB02A1P is a robust fuse holder for 14x51mm fuses, designed for AC circuits up to 690 V and 50 A. This 1P, one‑module unit offers safe, compact protection without a status indicator, suiting space‑constrained panels. Recognised to IEC/EN standards and UL/CSA, it provides dependable performance for industrial distribution and control applications.
Built for dependable panel integration, this 14x51mm fuse holder provides IP20 frontal protection and secure terminations with up to 3 Nm tightening torque. It operates from -20 to 70 °C, stores to -40 to 80 °C, and is suitable up to 3000 m altitude. At just 113 g and one module wide, it saves space without compromising performance.
Key Benefits
- Compatible with 14x51mm fuses for standardised industrial protection.
- Rated 50 A for AC circuits up to 690 V.
- Single‑pole, one‑module design saves space in crowded panels.
- IP20 frontal protection improves safety at the point of access.
- Wide -20 to 70 °C operating range suits harsh environments.
- Secure wiring with terminals tightened up to 3 Nm.
- IEC/EN, UL recognised and CSA certified for assured compliance.
- Without status indicator for straightforward, no‑frills installations.
Technical Specification
- Operating voltage type: AC
- Operating temperature: -20 to 70 °C
- Storage temperature: -40 to 80 °C
- Max altitude: 3000 m
- Terminal tightening torque (max): 3 Nm
- Weight: 113 g
- IP degree (frontal): IP20
What’s Included
- Lovato FB02A1P 1P fuse holder (14x51mm)
- Basic installation and safety information
- Protective packaging for transit
Applications
- Industrial control panels and distribution boards
- Switchboards and motor control centres
- AC circuits up to 690 V requiring 14x51mm fuse protection
- OEM machinery panels and equipment builds
- Maintenance, repair and overhaul replacements
Frequently Asked Questions
Which fuse size does the FB02A1P accept?
This holder is designed for 14x51mm fuses.
What are the maximum electrical ratings?
IEC maximum rated current is 50 A and voltage is 690 V AC.
Does the fuse holder have a status or light indicator?
No, the unit is supplied without a status indicator.
What environmental limits apply to this product?
Operating temperature is -20 to 70 °C, storage -40 to 80 °C, and max altitude 3000 m.
Which standards and approvals does it comply with?
Conforms to IEC/EN 60269-1/-2, 60947-1/-3; UL 4248-1; CSA C22.2 n°4248.1 and is UL recognised/CSA certified.
Safety note: Install and maintain only when de‑energised by qualified personnel. Use within the stated ratings and tighten terminals up to 3 Nm for secure connections.
| Manufacturer Part Number | FB02A1P |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85389099 |
| Barcode | 8013975186565 |
