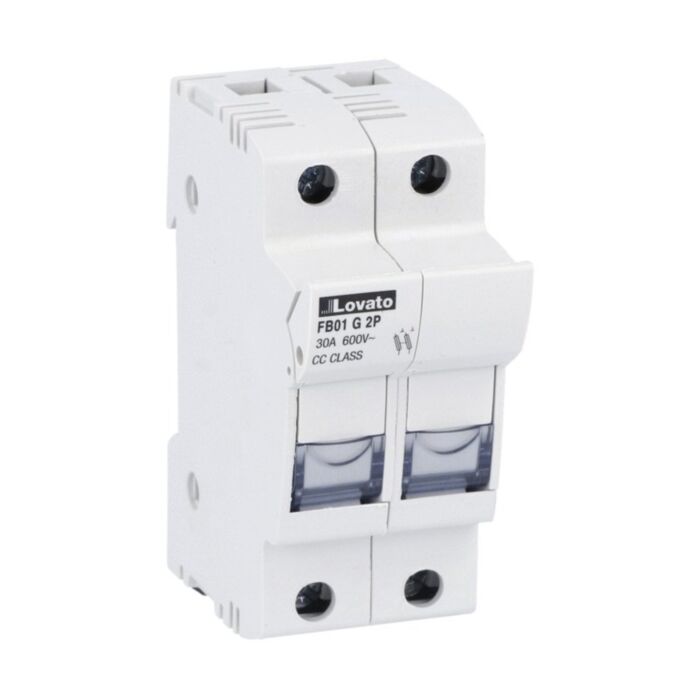

FB01G2P - FUSE HOLDER 1P CC CLASS 2P

Why Choose the FB01G2P?

Lovato FB01G2P fuse holder delivers dependable protection for AC circuits using 10x38mm and Class CC fuses. This 2‑pole, 2‑module unit supports 30 A and provides IP20 frontal protection, without a status indicator for simplified specification. Designed to meet IEC and UL requirements, the FB01G2P gives panel builders and OEMs a robust, North America‑ready option with consistent performance.

Engineered for reliability, this holder operates from −20 to +70 °C and is certified to IEC/EN 60269 and 60947, as well as UL/CSA standards for Class CC applications. With a maximum terminal tightening torque of 2.5 Nm and IP20 frontal protection, it supports secure connections and safe handling. IEC maximum rated values are 30 A and 600 V AC.

Key Benefits

• UL and IEC certified for Class CC and 10x38mm fuse applications.
• 2-pole, 2-module design supports 30 A AC circuits.
• IP20 frontal protection enhances safety during panel maintenance.
• Wide operating temperature range from −20 to +70 °C.
• Secure terminations with up to 2.5 Nm tightening torque.
• No status indicator for simplified, cost-effective installations.
• Lightweight 14 g unit for straightforward handling and assembly.

Technical Specification

• Product type designation: FB
• Operating voltage type: AC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Terminal tightening torque (max): 2.5 Nm
• Weight: 14 g
• IP degree (frontal): IP20

What’s Included

• Lovato FB01G2P 2-pole fuse holder
• Manufacturer's standard packaging
• Product documentation via downloadable datasheet

Applications

• Industrial control panels and switchgear assemblies
• Machine control circuits and OEM equipment
• Distribution boards and protective device panels
• Export builds for North American markets requiring UL Class CC compatibility

Safety note: Installation must be performed by a qualified electrician. Isolate power before work, use correctly rated 10x38mm/Class CC fuses, and tighten terminals to the specified torque.
