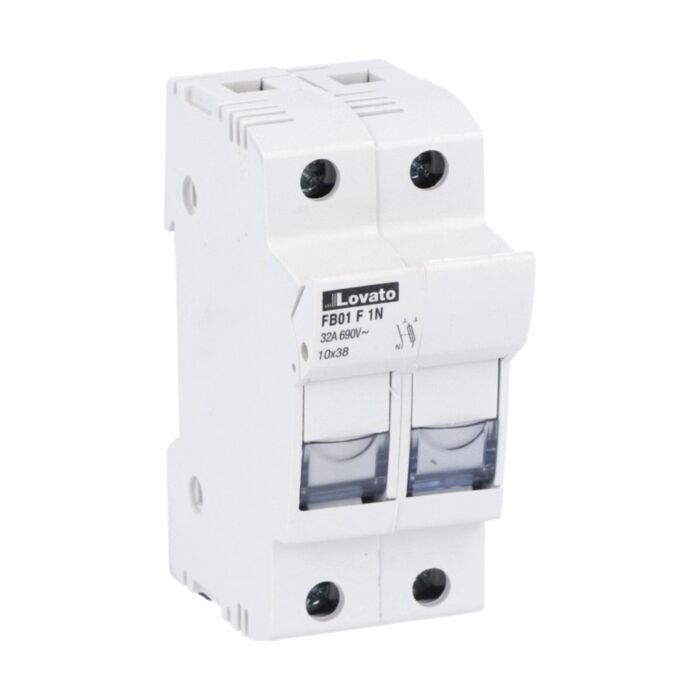

FB01F1N - FUSE HOLDER 1P+N 10X38

Why Choose the FB01F1N?

Lovato FB01F1N is a robust fuse holder for 10x38mm fuses, engineered for AC circuits. Rated 32A at up to 690VAC in a 1P+N configuration, it provides dependable protection in compact installations with a two‑module footprint. This fuse holder has no light indicator, is cUL recognised and CSA certified, and offers IP20 frontal protection.

Designed for reliability across -20 to +70 °C and up to 3000 m altitude, the FB01F1N meets IEC/EN 60269-1/-2, 60947-1/-3, UL 4248-1 and CSA C22.2 n°4248.1. Terminals support a maximum tightening torque of 2.5 Nm, and the unit weighs 134 g. Supplied as a 1P+N, two‑module device for 10x38mm fuses.

Key Benefits

• Accepts standard 10x38mm fuses for streamlined parts selection.
• 32A current rating at up to 690VAC for demanding AC circuits.
• 1P+N configuration for versatile, space-efficient AC applications.
• No light indicator for a simplified, uncluttered panel design.
• IP20 frontal protection against accidental finger ingress.
• Operates from -20 to +70 °C for dependable performance.
• Certified to IEC/EN, UL 4248-1 and CSA C22.2 standards.
• Maximum terminal tightening torque 2.5 Nm for secure connections.

Technical Specification

• Product type designation: FB
• Operating voltage type: AC
• Operating temperature: -20 to +70 °C
• Storage temperature: -40 to +80 °C
• Max altitude: 3000 m
• Terminal tightening torque (max): 2.5 Nm
• Weight: 134 g
• IP degree (frontal): IP20

What’s Included

• 1 x Lovato FB01F1N fuse holder (1P+N, 10x38mm)
• Manufacturer documentation
• Original manufacturer packaging

Applications

• Single-phase AC circuits up to 690 VAC requiring 1P+N protection
• 10x38mm cartridge fuse protection in industrial panels and switchboards
• Equipment and assemblies needing IEC/UL/CSA compliant fuse holders
• General AC distribution and control applications using 10x38mm fuses

Safety note: Installation and servicing must be performed by qualified personnel with power isolated. Use correctly rated 10x38mm fuses, observe the 2.5 Nm terminal torque, and follow applicable standards.
