SM1Z1715R - SURFACE MOUNT ENCLOSURE FOR SM1R... RED HANDLE
MPN: SM1Z1715R
Special Price
£30.70
£25.58
Regular Price
£51.17
Why Choose the SM1Z1715R?

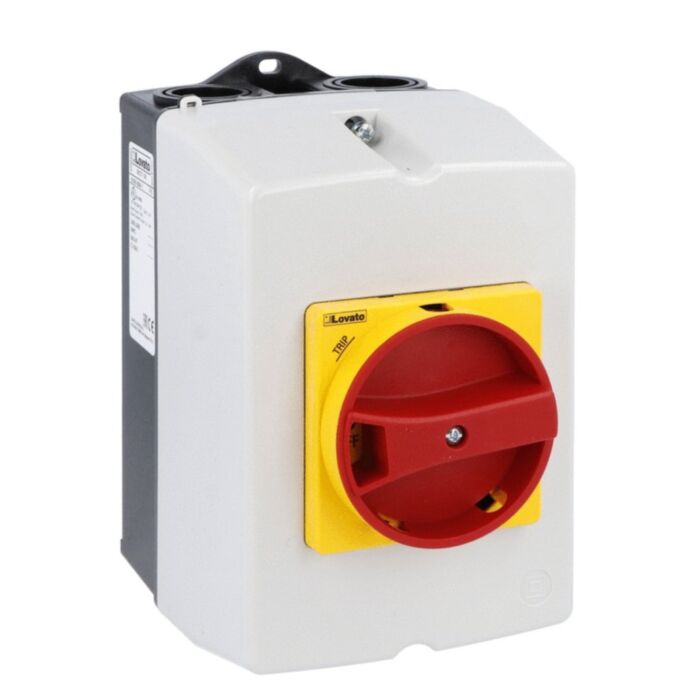

The Lovato SM1Z1715R surface mount enclosure is a robust IP65 (4X) accessory for SM1R… devices equipped with a red/yellow rotary actuator. With a compact 100 mm width, it delivers reliable environmental protection against dust and water in demanding installations. Built to Lovato’s SM1Z designation, it supports up to 100000 cycles mechanical life and conforms to IEC/EN 60947 standards for assured performance and compliance.
Designed for straightforward surface mounting, this enclosure operates between -25 to +60 °C and stores from -50 to +80 °C, supporting reliable service across varied site conditions. Weighing 350 g, it meets IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14, and carries a Sustainability certification. Ideal for housing SM1R… assemblies with a red/yellow rotary actuator while maintaining ingress protection and compliance.
Key Benefits
- IP65 (4X) sealing safeguards against dust ingress and water.
- Compact 100 mm width saves space in surface-mounted installations.
- Compatible with SM1R… devices featuring a red/yellow rotary actuator.
- Wide operating temperature range from -25 to +60 °C.
- Durable mechanical life rated for 100000 cycles.
- Conforms to IEC/EN 60947, UL508 and CSA C22.2 requirements.
- Lightweight 350 g enclosure for easier handling and mounting.
Technical Specification
- Product type designation: SM1Z
- Weight: 350 g
- Mechanical life: 100000 cycles
- Operating temperature: -25 to +60 °C
- Storage temperature: -50 to +80 °C
What’s Included
- Lovato SM1Z1715R surface mount enclosure
- Product datasheet (downloadable)
- Compliance and certification information
Applications
- Surface mounting SM1R… devices in dusty or splash-prone environments
- Industrial panels requiring IP65 (4X) protected rotary actuator interfaces
- Upgrades and maintenance of existing SM1R… assemblies
- General-purpose enclosures for control equipment within -25 to +60 °C
Frequently Asked Questions
What devices is the SM1Z1715R compatible with?
It is an accessory enclosure for SM1R… devices with a red/yellow rotary actuator.
What is the ingress protection rating?
The enclosure is rated IP65 (4X) for environmental protection.
What operating temperature range does it support?
It operates from -25 to +60 °C and stores from -50 to +80 °C.
What standards does this enclosure conform to?
It meets IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14.
What is the mechanical life rating?
The mechanical life is rated at 100000 cycles.
Safety note: Installation should be performed by qualified personnel. Maintain sealing integrity and observe the stated temperature limits and applicable standards to preserve the IP65 (4X) rating.
| Manufacturer Part Number | SM1Z1715R |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85381000 |
| Barcode | 8013975224823 |
