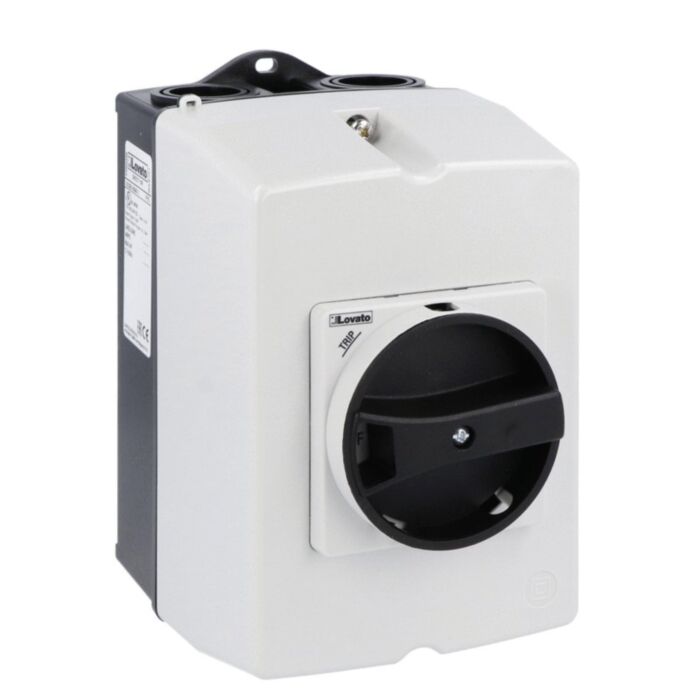

SM1Z1710R - SURFACE MOUNT ENCLOSURE FOR SM1R BLACK HANDLE

Why Choose the SM1Z1710R?

Engineered by Lovato, the SM1Z1710R surface mount enclosure delivers reliable environmental protection for SM1R… devices. Rated IP65 (4X), this accessory features a black rotary actuator and a compact 100mm width for straightforward installation on control stations. With a robust build and precise actuation, it’s an ideal choice when you need a sealed, surface-mounted solution that keeps contaminants out and operation accessible.

Part of the SM1Z designation, this enclosure is built for endurance with a mechanical life of 100000 cycles. It performs from -25 to +60 °C and stores from -50 to +80 °C, weighing just 245 g. Conformity to IEC/EN 60947-1 and 60947-5-1, UL508 and CSA C22.2 n° 14 supports use in demanding industrial environments and compliance-driven applications.

Key Benefits

• IP65 (4X) sealed protection against dust and water jets.
• Designed as an enclosure accessory for SM1R… devices.
• Integrated black rotary actuator for clear, accessible control.
• Compact 100mm width suits space-constrained control stations.
• Durable mechanical life rated at 100000 cycles.
• Operates reliably from -25 to +60 °C ambient.
• Conforms to IEC/EN 60947-1/-5-1, UL508 and CSA standards.
• Lightweight 245 g simplifies handling and installation.

Technical Specification

• Product type designation: SM1Z
• Weight: 245 g
• Mechanical life: 100000 cycles
• Operating temperature: -25 to +60 °C
• Storage temperature: -50 to +80 °C

What’s Included

• Surface mount enclosure IP65 (4X), 100mm width
• Pre-fitted black rotary actuator
• Manufacturer documentation

Applications

• Surface-mounted control stations using Lovato SM1R… devices
• Industrial panels requiring IP65 (4X) environmental sealing
• Machinery controls in dusty or splash-prone areas
• Retrofit or new installations where compact enclosures are needed

Safety note: Install and commission only by qualified personnel. Maintain gasket integrity and follow specified temperature limits to ensure IP65 (4X) performance; isolate power before any service.
