BN AC2ZA02 Pizzato BN Series IP65 2 Device Control Unit
MPN: BN AC2ZA02
Alt. SKU: BNAC2ZA02
£147.22
£122.68
Why Choose the BNAC2ZA02

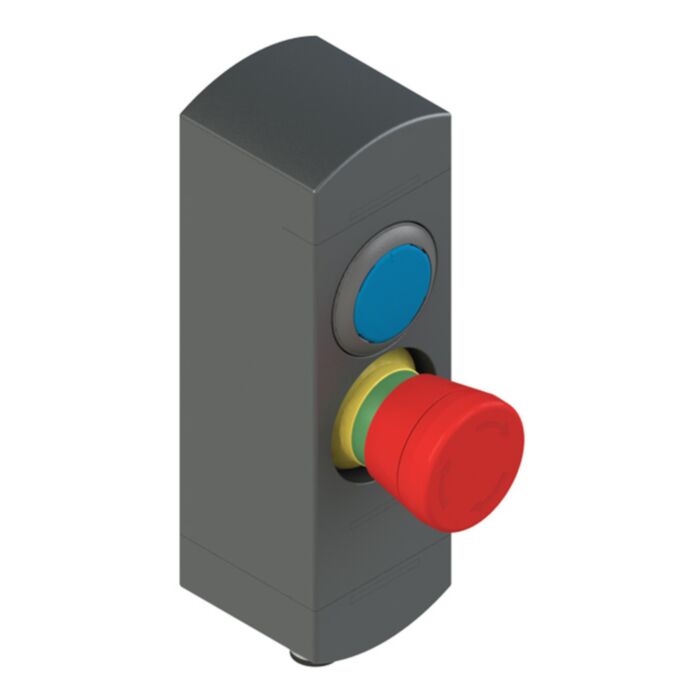

The Pizzato Elettrica BNAC2ZA02 is a robust BN Series control device unit configured with two operator positions: a blue pushbutton (1NO) and a red emergency stop button, turn to release (2NC). This compact solution is engineered for rapid installation and machine safety, combining industrial reliability with simplified wiring via its M12 8-pole connector.
With an IP65 protection degree in line with EN 60529, this unit handles industrial environments with dependable resistance to dust and water jets. The pre-configured actuator combination suits diverse machine-side control and safety applications.
Key Benefits
- Dual device configuration: Includes blue pushbutton (1NO) and red emergency stop (2NC, turn to release)
- M12, 8-pole connector for streamlined wiring during installation or retrofit
- IP65 enclosure-protection against dust and water jets to EN 60529
- International approvals: cULus, CE (EU Declaration), UKCA
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: BN Series
- Product type: Control device unit
- Device configuration:
- Position 1: Blue pushbutton, 1NO contacts
- Position 2: Red emergency stop button, turn to release, 2NC contacts
- Total contacts: 1NO (pushbutton), 2NC (emergency stop)
- Protection degree: IP65 according to EN 60529
- Connection: M12 connector, 8-pole, at bottom
- Approvals: cULus Certificate, EU Declaration of Conformity, UKCA Declaration of Conformity
- Standards compliance: EN 60529
What’s Included
- BNAC2ZA02 Pizzato Elettrica BN Series control device unit
- Factory-assembled actuators: blue pushbutton and red emergency stop
- Ready-to-use M12 (8-pole) bottom connection
- Manufacturer documentation and approvals available
Applications
- Machine panels requiring a local start/reset and emergency stop interface
- Production lines and process machines needing operator safety and control actions
- Safety circuits monitored with safety relays or PLCs utilising dual-channel NC contacts
- Environments needing IP65 ingress protection at the control interface
Maintenance and Inspection
Perform routine visual checks for mounting security and actuator integrity. Confirm correct operation of pushbutton and emergency stop, verifying contact state via the safety system. Replace the unit if signs of damage or excessive wear are detected.
Frequently Asked Questions
What contacts are provided with the BNAC2ZA02?
It includes a blue pushbutton with 1NO contacts and a red emergency stop button (turn-to-release) with 2NC contacts.
Is the unit rated for industrial environments?
Yes, the IP65 protection rating ensures dust tightness and resistance to water jets, meeting EN 60529 standards for typical industrial use.
What approvals does this model have?
The BNAC2ZA02 is certified with cULus, EU Declaration of Conformity, and UKCA Declaration of Conformity.
How is the device connected electrically?
Electrical connection is via a bottom-mounted M12, 8-pole connector for rapid integration into machine wiring.
What standards does the unit comply with?
It complies with EN 60529 for enclosure protection.
Safety note: Ensure this device is integrated according to the machine’s risk assessment and relevant standards for emergency stop and safety circuit design. Always consult the manufacturer’s documentation during installation.
| Alternative Product SKU | BNAC2ZA02 |
|---|---|
| Manufacturer Part Number | BN AC2ZA02 |
| Manufacturer | Pizzato |
| Barcode | 8018851564888 |
| Degree of protection (IP) | IP65 |
| Suitable for emergency stop | Yes |
| Colour housing cover | Grey |
| Housing material | Plastic |
| Number of command positions | 2 |
| Range | BN |
| Packed Quantity | 1 |
| HS Code | 85369095 |
