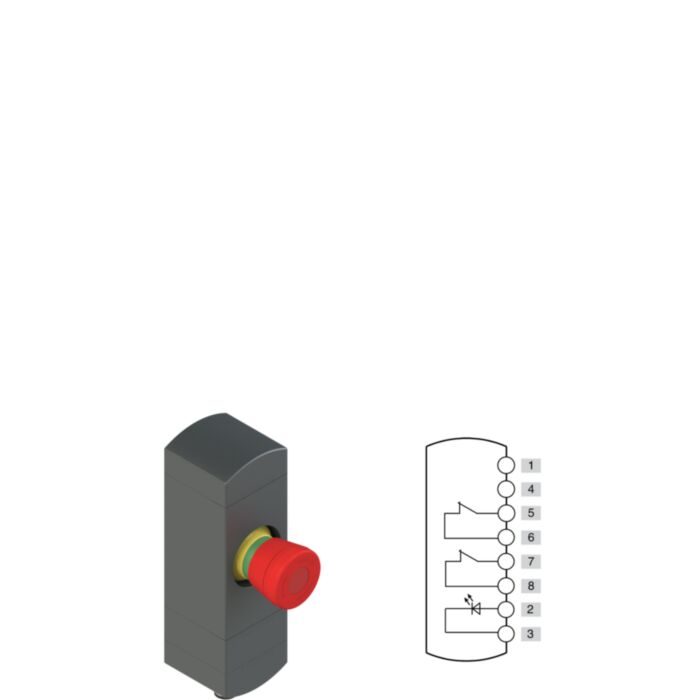

BN AC1ZA05 Pizzato BN Series IP65 1 Device Control Unit
MPN: BN AC1ZA05
Alt. SKU: BNAC1ZA05
£133.73
£111.44
Why Choose the BNAC1ZA05
The Pizzato Elettrica BNAC1ZA05 is a robust BN AC Series control device unit designed for industrial safety circuits where local emergency stop functionality is required. It features a single illuminated red emergency stop button with a turn-to-release mechanism and two normally closed (2NC) contacts for reliable dual-channel monitoring.
The enclosure provides IP65 protection according to EN 60529, suitable for use in demanding industrial environments. The 8-pole M12 connector at the bottom facilitates straightforward panel mounting and secure wiring in automation systems.
Key Benefits
- Pre-assembled emergency stop solution minimises assembly time
- Turn-to-release operator helps prevent inadvertent equipment restart
- 2NC contacts support dual-channel safety circuits
- IP65 protection ensures durability against dust and water jets
- Quick, standardised M12 (8-pole) connector for reliable integration
Technical Specification
- Manufacturer: Pizzato Elettrica
- Series: BN AC Series
- Product type: Control device unit
- Device configuration: 1 device: 1 illuminated red emergency stop button, turn to release
- Contacts: 2NC
- Protection degree: IP65 according to EN 60529
- Connection: M12 connector, 8-pole, at bottom
What’s Included
- BNAC1ZA05 emergency stop control device unit (fully assembled)
- Instructions and certification available from Pizzato Elettrica
Applications
- Machine emergency stop stations on guards, panels, or access points
- Conveyor and assembly line safety stop interfaces
- Installations that require dual-channel safety device feedback
- Industrial automation systems with standardised field wiring
Typical Wiring Use
Both 2NC contacts should be wired separately to a dual-channel safety relay or safety PLC input for performance level compliance. Use the 8-pole M12 connector to ensure correct channel allocation and straightforward maintenance.
Maintenance and Inspection
Routine checks are recommended: inspect the mounting and emergency stop operation periodically, and confirm electrical integrity of contacts and connectors as part of site maintenance procedures. Replace the unit if physical or functional issues are detected.
Frequently Asked Questions
What is the BNAC1ZA05 used for?
It is used as a local emergency stop station for machine safety, providing a rapid means for operators to halt equipment in the event of hazard or emergency.
What does turn-to-release mean?
After actuation, the emergency stop button must be rotated before the machine can be safely reset and restarted, preventing accidental resets.
What is the benefit of 2NC contacts?
The two normally closed contacts enable dual-channel wiring to safety relays or PLCs, supporting fail-safe redundancy according to safety standards.
What is the protection degree of this unit?
It is IP65 rated according to EN 60529, meaning it is protected against dust and water jets for suitable industrial use.
How is the device connected?
The device features an 8-pole M12 connector located at the bottom, streamlining wiring and integration with control panels or machine fieldbus systems.
Safety note: Select and integrate emergency stop devices in accordance with your machine risk assessment and relevant standards such as EN ISO 13849 and IEC 62061. Always follow the manufacturer's guidelines and wiring instructions.
| Alternative Product SKU | BNAC1ZA05 |
|---|---|
| Manufacturer Part Number | BN AC1ZA05 |
| Manufacturer | Pizzato |
| Barcode | 8018851576935 |
| Degree of protection (IP) | IP65 |
| Suitable for emergency stop | Yes |
| Colour housing cover | Grey |
| Housing material | Plastic |
| Number of command positions | 1 |
| Range | BN |
| Packed Quantity | 1 |
| HS Code | 85369095 |
