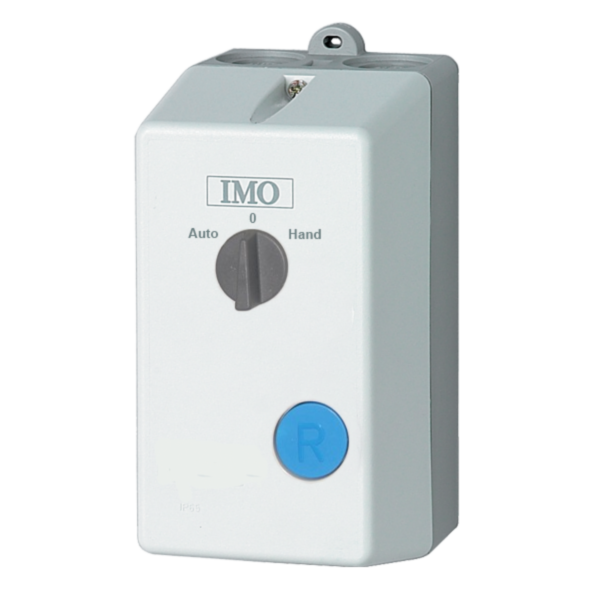

DOLH10230 IMO DOL Starter 4kW 10A IP65 Auto Off Hand,230VAC Coil

Why Choose the IMO DOLH10230 Direct-On-Line Starter?

The IMO DOLH10230 is a robust and compact direct-on-line motor starter designed for reliable switching and control of electric motors in industrial, commercial and automation applications. Manufactured by IMO Precision Controls, it provides a practical enclosed starter solution for machinery, pumps, fans, compressors and general motor control systems.

This DOL starter is rated for 4 kW motor power with a 10 A AC-3 current rating and features a 230 V AC coil. Unlike standard start / stop versions, the DOLH10230 includes a Hand-Off-Auto selector switch, making it ideal for installations where local manual control and automatic external control are required.

With an IP65 rated enclosure, M20 conduit knockouts and wiring arranged to accept a compatible overload relay, the IMO DOLH10230 is designed for demanding environments where protection, operational flexibility and ease of installation are essential.

Key Advantages

• Complete direct-on-line starter for motor control applications.
• 4 kW rated motor power suitable for pumps, fans and industrial machinery.
• 10 A AC-3 current rating for dependable motor switching.
• 230 V AC coil for standard control circuit compatibility.
• Hand-Off-Auto selector switch for flexible manual and automatic operation.
• IP65 enclosure protects against dust and water ingress.
• Wired to accept a compatible overload relay for motor protection.

Key Features

• IMO DOLH10230 direct-on-line motor starter.
• 4 kW motor rating at 400 V AC-3.
• 10 A AC-3 current rating.
• 230 V AC coil voltage.
• IP65 rated enclosure for protected installation.
• Hand-Off-Auto selector switch with reset function.
• Wired to accept compatible IMO overload relay.
• M20 × 1.5 conduit knockouts for cable entry.
• Suitable for three-phase motor control systems.

Technical Specifications

• Manufacturer: IMO Precision Controls
• Model: DOLH10230
• Product type: Direct-on-line motor starter
• Starter type: DOL starter with Hand-Off-Auto selector switch
• Rated motor power: 4 kW
• AC-3 current rating: 10 A
• Horsepower rating: 6 HP
• Coil voltage: 230 V AC
• Frequency: 50 Hz
• Protection rating: IP65
• Contactor reference: MC10N-S-10 series
• Compatible overload range: U12/16E series, sold separately where applicable
• Maximum frequency of operation: 15 operations per hour
• Maximum ambient temperature: 40°C
• Coil inrush: 35-45 VA
• Coil hold: 7-10 VA
• Voltage range: 0.85-1.1
• Line cable cross section: 0.75-4 mm² solid or stranded
• Cable entries: M20 × 1.5 conduit knockouts
• Dimensions (H × W × D): approx. 191 × 89 × 101 mm
• GTIN / EAN: 5059394351569
• UL file number: E146235

Reliable Motor Starting with Manual and Automatic Control

Direct-on-line starters such as the IMO DOLH10230 are used to start electric motors by applying full line voltage directly to the motor terminals. This provides a simple and reliable starting method for suitable motors where high starting torque and straightforward control are required.

The Hand-Off-Auto selector makes the DOLH10230 especially useful in systems where a motor may need to be controlled locally by an operator or automatically by an external control device. This makes it suitable for pump control, fan systems, process equipment and machine installations where flexible operating modes are required.

Typical Applications

• Pumps and water treatment equipment.
• Fans, blowers and ventilation systems.
• Compressors and small industrial machinery.
• Conveyors and material handling equipment.
• Automatic motor control circuits.
• Industrial control panels and motor control installations.
• Agricultural, commercial and light industrial motor systems.

Trusted by Industrial Engineers and Panel Builders

IMO direct-on-line starters such as the DOLH10230 are widely used by electricians, panel builders, machine builders and maintenance engineers who require reliable motor starting with flexible manual and automatic control.
