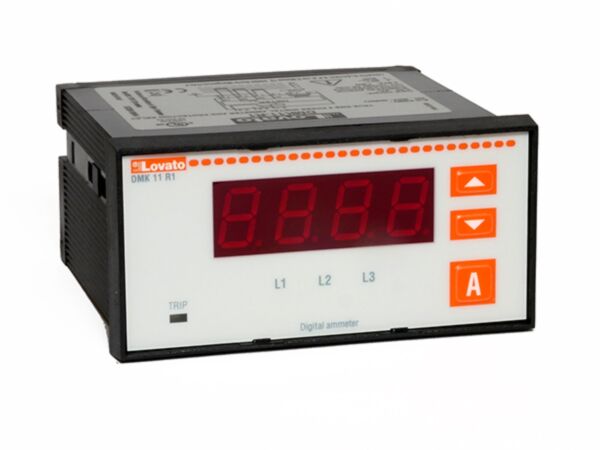

DMK11R1 - FLUSH MOUNT THREE PHASE AMMETER 96 X 48MM

Why Choose the DMK11R1?

Built for panel builders and OEMs, the Lovato DMK11R1 digital metering instrument delivers dependable performance in space‑constrained installations. The DMK11R1 fits flush mounting layouts and suits projects specifying an auxiliary supply (Us). With a rated insulation voltage of 415 V and a compact 336 g form, this instrument integrates cleanly into switchboards and control panels, supporting accurate metering and reliable operation across industrial and building services applications.

Engineered for harsh environments, this digital metering instrument operates from −20 to +60 °C and can be stored between −30 and +80 °C. Compliance with IEC/EN 61010-1 and EMC standards IEC/EN 61000-6-2 and 61000-6-3, plus UL508 and CSA C22.2 n° 14, streamlines approval on international projects. Backed by Lovato’s quality and a Sustainability certification, it offers a robust, compliant choice for modern electrical panels.

Key Benefits

• Flush mounting design integrates cleanly into panels and switchboards.
• Rated insulation voltage 415 V enhances electrical safety margins.
• Wide operating temperature -20 to +60 °C for varied environments.
• Extended storage temperature -30 to +80 °C simplifies logistics.
• Conforms to IEC/EN 61010-1 and EMC standards for compliance.
• UL508 and CSA C22.2 n° 14 approvals support global projects.
• Compact 336 g unit eases handling and installation.
• Sustainability certification supports corporate environmental goals.

Technical Specification

• Product type designation: DMK11R1
• Rated insulation voltage Ui (IEC/EN): 415 V
• Weight: 336 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMK11R1 digital metering instrument
• Panel flush-mounting hardware
• Installation and safety instructions
• Declaration of conformity

Applications

• Industrial control panels and switchboards
• OEM equipment and machine dashboards
• Energy and utility monitoring enclosures
• Building services and plant rooms
• Process automation cabinets

Safety note: Install and commission only by qualified personnel. Isolate all power sources before mounting, and operate within the specified voltage and temperature limits while observing the listed standards.
