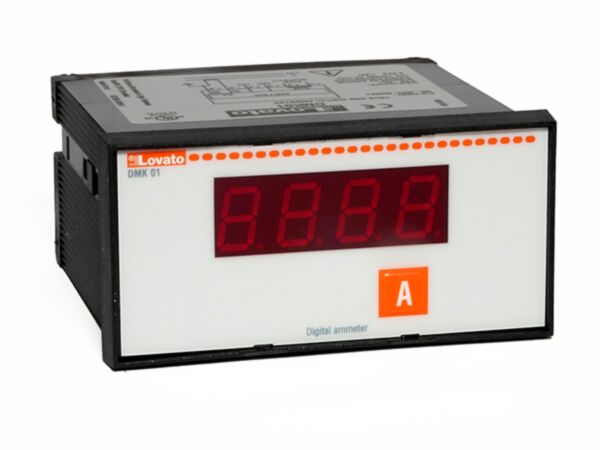

DMK01 - DIGITAL AMMETER 1 PH 96X48MM
MPN: DMK01
Why Choose the DMK01?
The Lovato DMK01 is a digital metering instrument for auxiliary supply applications in control panels and switchboards. Designed for flush mounting, DMK01 fits cleanly into panel cut-outs for a professional finish. Its rated insulation voltage Ui of 415 V enhances electrical isolation, while the lightweight 290 g design simplifies handling and installation for panel builders and OEMs.
Built for demanding environments, it operates from -20 to +60 °C and can be stored from -30 to +80 °C. Compliance includes IEC/EN 61010-1 for safety, IEC/EN 61000-6-2/-6-3 for EMC, plus UL508 and CSA C22.2 n° 14. A sustainability certification from the manufacturer underlines responsible design for reliable auxiliary supply monitoring across industrial and building automation panels.
Key Benefits
- Flush mounting for clean installation in control panels and switchboards.
- Rated insulation voltage Ui 415 V enhances electrical safety and isolation.
- Operates from -20 to +60 °C for reliable service in harsh conditions.
- Conforms to IEC/EN 61010-1 for measurement and control equipment safety.
- EMC compliance to IEC/EN 61000-6-2 and 61000-6-3 suits industrial environments.
- Lightweight 290 g unit simplifies panel handling and mounting.
- Complies with UL508 and CSA C22.2 n° 14 for broader market requirements.
- Manufacturer sustainability certification supports responsible specification.
Technical Specification
- Product type designation: DMK01
- Rated insulation voltage Ui (IEC/EN): 415 V
- Weight: 290 g
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
What’s Included
- Lovato DMK01 digital metering instrument
- Panel mounting hardware for flush installation
- Quick start guide
- Manufacturer datasheet (downloadable)
Applications
- Auxiliary supply monitoring in industrial control panels
- Switchboards and distribution boards requiring compact metering
- Building services and HVAC automation panels
- OEM machinery control cabinets and enclosures
- Process equipment panels needing standards-compliant instrumentation
Frequently Asked Questions
What is the installation type of the DMK01?
It is designed for flush mounting in panels or enclosures.
What temperature range can the DMK01 operate in?
It operates from -20 to +60 °C and can be stored from -30 to +80 °C.
What is the rated insulation voltage Ui?
The rated insulation voltage Ui (IEC/EN) is 415 V.
Which standards does the DMK01 comply with?
It conforms to IEC/EN 61010-1, IEC/EN 61000-6-2/-6-3, UL508 and CSA C22.2 n° 14.
How much does the unit weigh?
The device weighs 290 g, aiding easy handling during installation.
Safety note: Install and commission only by qualified personnel. Isolate all power sources before work and follow IEC/EN 61010-1 and applicable UL/CSA requirements for safe operation.
| Manufacturer Part Number | DMK01 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975154687 |
