DMG900TD048 - TRASDUTTORE DI MISURA

Why Choose the DMG900TD048?

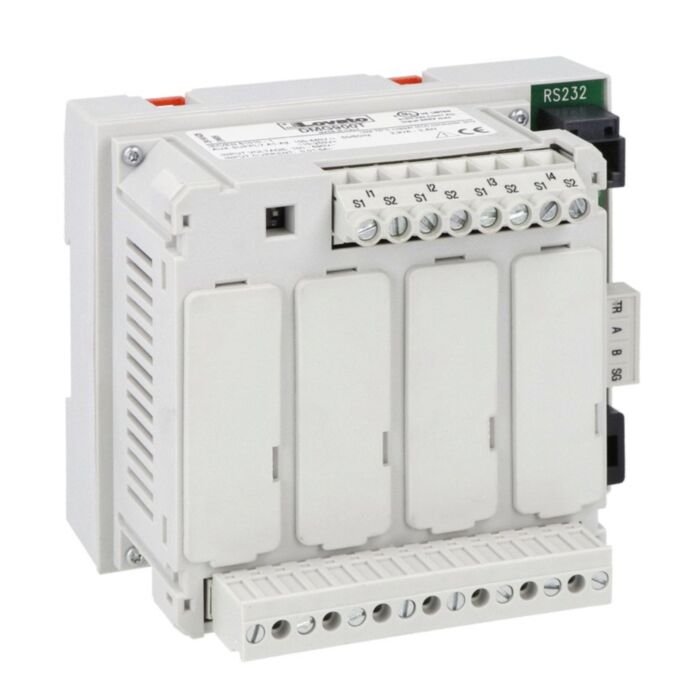

Engineered for precise power monitoring, the Lovato DMG900TD048 is a multifunction digital metering instrument from the DMG900 range. It supports CT /5A /1A connections and delivers Class 0.5s active energy accuracy with Class 2 reactive energy. Harmonic analysis up to the 63rd order aids power quality assessment, while flush mounting and an auxiliary 12-24-48VDC supply simplify panel integration in demanding environments.

Robust by design, the DMG900 offers 690 V rated insulation and 9.5 kV impulse withstand, operating reliably from -20 to +60 °C. It conforms to IEC/EN 61010-1, 61000-6-2 and 61000-6-4, and holds UL508 and CSA C22.2 n°14 recognition. An expandable architecture helps adapt functionality as requirements grow, supporting long-term performance in industrial and commercial switchboards.

Key Benefits

• Class 0.5s active energy accuracy for dependable measurement.
• Class 2 reactive energy measurement for consistent power factor analysis.
• 63rd-order current harmonic analysis to assess power quality comprehensively.
• Flush mounting simplifies installation in panels and switchboards.
• CT /5A /1A inputs accommodate varied measurement transformers.
• Rated insulation 690 V and 9.5 kV impulse withstand for safety.
• Operates from -20 to +60 °C in demanding environments.
• Expandable architecture to support future functional enhancements.

Technical Specification

• Product type designation: DMG900
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 590 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG900 multifunction digital metering instrument (SKU: DMG900TD048)
• Panel flush-mounting hardware
• User manual and documentation
• Safety and compliance information

Applications

• Industrial and commercial switchboard metering and load monitoring
• Power quality and harmonics assessment up to the 63rd order
• Energy management and sub-metering for facilities and OEM panels
• Monitoring CT-fed feeders and distribution circuits
• Integration into flush-mounted control panels

Safety note: Install and commission only by qualified personnel. De-energise circuits before connection, observe IEC/EN 61010-1, and respect the 690 V insulation and 9.5 kV impulse ratings. Use correct CT connections and follow the supplied documentation.
