DMG900RD - REMOTE DISPLAY C/W 3MT CONNECTING CABLE
MPN: DMG900RD
Special Price
£478.81
£399.01
Regular Price
£563.30
Why Choose the DMG900RD?

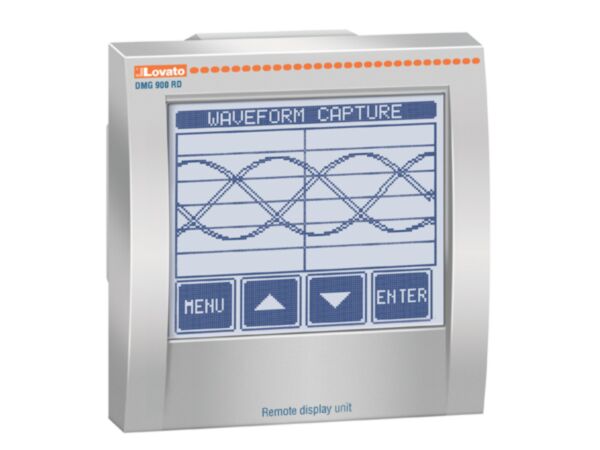

The Lovato DMG900RD is a multifunction digital metering instrument designed for flush mounting in control panels and switchboards. A graphic 128×112 pixel touch‑screen LCD and a 3 m (9.8 ft) connecting cable make setup and viewing straightforward. With a rated insulation voltage of 690 V and 9.5 kV impulse withstand, it delivers robust performance in demanding electrical environments.
Conforming to IEC/EN 61000‑6‑2 and 61000‑6‑3, and recognised to UL508 and CSA C22.2 n°14, the DMG900 designation delivers assured electromagnetic compatibility. It operates from −20 to +60 °C (storage −30 to +80 °C) and is expandable for project scalability. With flush mounting and no built‑in communication port to manage, integration is straightforward across panel builds and retrofit upgrades.
Key Benefits
- Graphic touch‑screen display for clear, intuitive readings in panel environments.
- 3 m connecting cable enables flexible display placement within enclosures.
- Flush mounting achieves a neat, professional finish on switchboards.
- 690 V Ui insulation rating enhances safety in low‑voltage assemblies.
- 9.5 kV impulse withstand resists transient overvoltage disturbances.
- −20 to +60 °C operating range suits varied on‑site conditions.
- Expandable design supports future functional additions when required.
- Conformity to IEC/EN, UL and CSA standards assures dependable integration.
Technical Specification
- Product type designation: DMG900
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 9.5 kV
- Weight: 396 g
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
What’s Included
- Lovato DMG900RD multifunction digital metering instrument
- 3 m (9.8 ft) connecting cable
- Flush-mounting hardware
- Quick start guide
Applications
- Electrical switchboards and distribution panels
- Industrial control panels
- Building services and facility power monitoring
- OEM equipment and machinery panels
- Retrofit upgrades in existing enclosures
Frequently Asked Questions
Does the DMG900RD have a built-in communication port?
No. The specification states there is no built‑in communication port.
What display and cable length does it provide?
It features a 128×112 pixel touch‑screen LCD with a 3 m (9.8 ft) cable.
Is the device expandable?
Yes. The unit is expandable to support future project requirements.
What is the operating temperature range?
The operating range is −20 to +60 °C; storage is −30 to +80 °C.
Which standards does it conform to?
It conforms to IEC/EN 61000‑6‑2 and 61000‑6‑3, UL508 and CSA C22.2 n°14.
Safety note: Install and commission by qualified personnel only. De‑energise circuits before work, follow IEC/EN, UL and CSA requirements, and operate within the specified voltage and temperature limits.
| Manufacturer Part Number | DMG900RD |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90303100 |
| Barcode | 8013975180600 |
