DMG900D048 - MULTIMETRO DIGITALE DA INCASSO 96X96

Why Choose the DMG900D048?

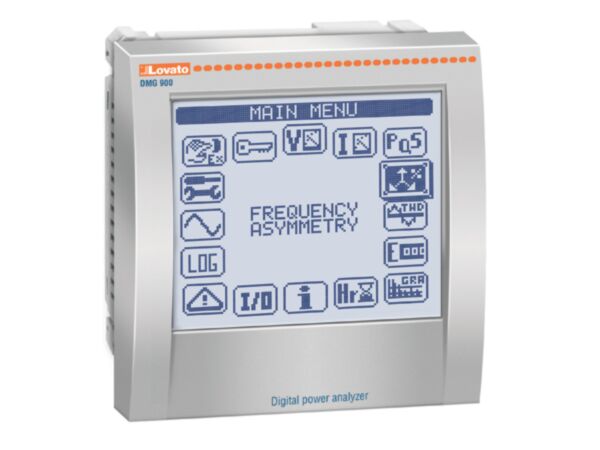

Lovato’s DMG900D048 is a flush-mount multifunction digital metering instrument and power analyser with a responsive 128x112 pixel touch-screen LCD. Designed for CT /5A /1A connections, it delivers Class 0.5s active energy accuracy and Class 2 reactive energy measurement. The unit is expandable and offers harmonic analysis up to the 63rd order, giving reliable, granular visibility of electrical parameters for panels, switchboards, and energy management applications.

Built for demanding environments, the instrument provides a rated insulation voltage of 690 V and 9.5 kV impulse withstand. It operates from -20 to +60 °C and accepts a 12-24-48VDC auxiliary supply. There is no built-in communication port, and the expandable design supports system scalability. Conformity includes IEC/EN 61010-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, UL508 and CSA C22.2 n°14 for assured reliability and compliance.

Key Benefits

• Flush-mount design integrates neatly into control panels and switchboards.
• 128x112 pixel touch-screen LCD for quick navigation and clear visuals.
• Class 0.5s active energy accuracy for precise metering and reporting.
• Harmonic analysis up to the 63rd order for power quality insight.
• Supports CT /5A /1A connections for installation flexibility.
• Wide 12-24-48VDC auxiliary supply suits diverse control systems.
• Conformity to IEC/EN, UL and CSA standards for compliance confidence.

Technical Specification

• Product type designation: DMG900
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 580 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG900D048 multifunction power analyser (flush-mount)
• Mounting accessories (as provided by manufacturer)
• Quick start guide and safety information

Applications

• Industrial and commercial power monitoring panels
• Energy management and load profiling in facilities
• Power quality and harmonic analysis in electrical networks
• OEM control panels and building services switchgear

Safety note: Install and commission only by qualified personnel. Isolate all power sources before work and follow IEC/EN 61010-1 and the manufacturer’s instructions.
