DMG800D048 - FLUSH DIGITAL METER 96X96 12-24-48VDC

Why Choose the DMG800D048?

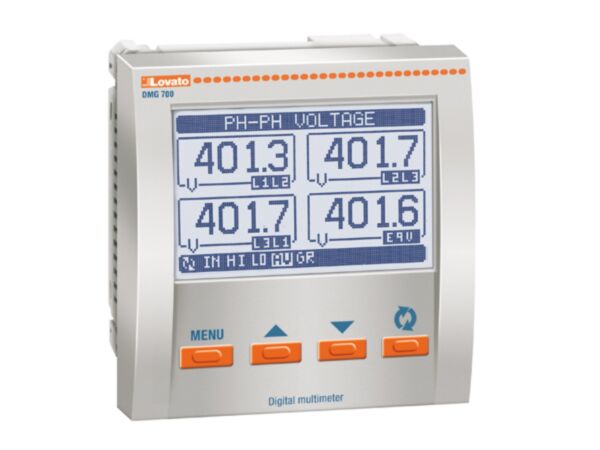

The Lovato DMG800D048 is a multifunction digital metering instrument for flush mounting, designed for accurate monitoring in panels. This expandable unit features a graphic 128x80 pixel LCD and accepts CT connections at /5A or /1A. It delivers Class 0.5s active energy accuracy and Class 2 reactive energy per IEC/EN standards, performs harmonic analysis up to the 31st order, and operates from a 12–24–48VDC auxiliary supply.

Built for industrial reliability, it carries a rated insulation voltage of 690 V and impulse withstand of 9.5 kV. Operates from -20 to +60 °C and stores from -30 to +80 °C. Conforms to IEC/EN 61010-1, 61000-6-2, 61000-6-4, UL508 and CSA C22.2 n°14. No built-in communication port is provided, and the device is expandable to suit evolving monitoring requirements.

Key Benefits

• Class 0.5s active energy accuracy per IEC/EN 62053-22.
• Class 2 reactive energy accuracy per IEC/EN 62053-23.
• Harmonic analysis up to the 31st order for power quality insight.
• Graphic 128x80 pixel LCD for clear, at-a-glance readings.
• Flush mounting for neat, space-efficient panel integration.
• CT /5A or /1A input flexibility to suit installed transformers.
• Expandable architecture to accommodate evolving monitoring needs.
• 12–24–48VDC auxiliary supply supports varied control power systems.

Technical Specification

• Product type designation: DMG800
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 510 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG800D048 multifunction digital metering instrument
• User documentation and safety information

Applications

• Electrical distribution panels requiring multifunction metering
• Industrial and commercial switchboards with CT-based measurements
• Power quality assessment with 31st-order harmonic analysis
• Sites needing devices conforming to IEC/EN, UL and CSA standards

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate supplies and short CTs before wiring, follow IEC/EN 61010-1 and local regulations, and operate within the specified temperature limits.
