DMG611R6300 - DMG611 WITH 3 ROGOWSKI COILS

Why Choose the DMG611R6300?

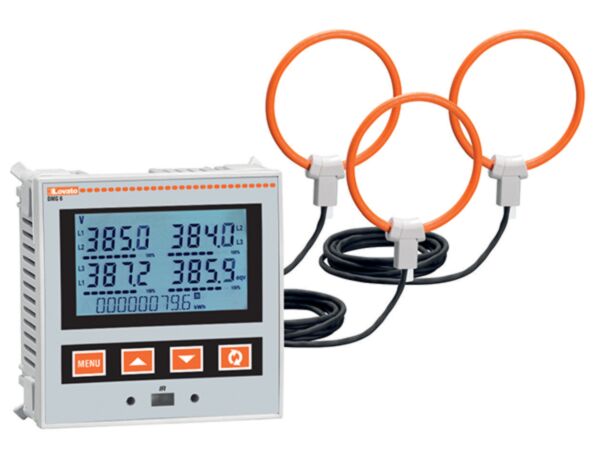

Lovato’s DMG611R6300 is a multifunction digital metering instrument designed for flush mounting with a clear backlight icon LCD (72×46 mm). It runs from a wide auxiliary supply of 100–440 VAC or 120–250 VDC and features both a front optical port and RS485 communication. Current is measured via three included Rogowski coils (Ø240 mm, 2 m leads) for loads up to 6300 A, making installation fast and non-intrusive.

This expandable meter delivers Class 1 active energy accuracy (IEC/EN 62053-21) and Class 2 reactive energy (IEC/EN 62053-23), with current harmonic analysis up to the 15th order. Built for demanding environments, it offers 600 V rated insulation and 9.5 kV impulse withstand, operates from −20 to +60 °C, and weighs 350 g. Conforming to IEC/EN 61010-1, 61010-2-030, 61000-6-2, and 61000-6-3, it integrates easily over RS485 for energy monitoring and power quality insight.

Key Benefits

• Wide auxiliary supply simplifies retrofit across varied panels.
• Measure high currents up to 6300 A with Rogowski coils.
• Flush-mount backlit LCD provides clear readings in low light.
• RS485 and front optical port enable easy system integration.
• Expandable design supports future functionality upgrades.
• Class 1 active energy accuracy for dependable measurements.
• Harmonic analysis to 15th order aids power quality assessment.
• Robust insulation and 9.5 kV impulse withstand increase safety.

Technical Specification

• Product type designation: DMG611
• Rated insulation voltage Ui (IEC/EN): 600 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 350 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• DMG611R6300 multifunction digital metering instrument
• Three Rogowski coils (Ø240 mm) with 2 m leads
• Front optical port and RS485 communication onboard
• Installation and safety documentation

Applications

• Industrial and commercial switchboards requiring flush-mounted metering
• Energy submetering and load monitoring across multiple circuits
• Retrofit current measurement where clamps are impractical
• Power quality overview with 15th-order harmonic analysis
• Integration into RS485-based energy management systems

Safety note: Installation must be performed by qualified personnel. Isolate all supplies before wiring, respect the rated insulation and impulse withstand limits, use the Rogowski coils within the 6300 A range, and follow applicable IEC/EN standards and the manufacturer’s instructions.
