DMG611R3000 - DMG611 WITH 3 ROGOWSKI COILS

Why Choose the DMG611R3000?

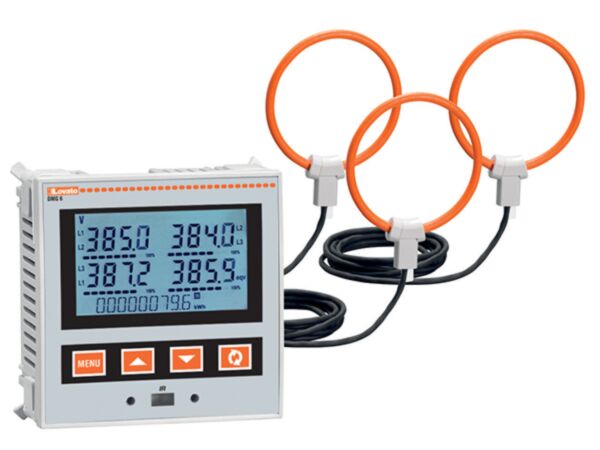

Lovato’s DMG611R3000 is a multifunction digital metering instrument for flush mounting, designed for accurate monitoring and analysis. The backlight icon LCD display (72×46 mm) provides clear readouts, while the wide auxiliary supply range of 100–440 VAC / 120–250 VDC simplifies panel integration. Built-in RS485 and a front optical port offer flexible communications, and the expandable platform supports evolving metering requirements.

Current is measured via three included Rogowski coils (Ø150 mm, 2 m leads) for up to 3000 A, with harmonic analysis to the 15th order. Active energy accuracy is Class 1 (IEC/EN 62053-21) and reactive Class 2 (IEC/EN 62053-23). Rated Ui 600 V and Uimp 9.5 kV, with -20 to +60 °C operation and conformity to IEC/EN 61010 and 61000 standards.

Key Benefits

• Flush-mount design with clear backlight icon LCD for easy panel integration.
• Wide auxiliary supply 100–440 VAC / 120–250 VDC simplifies power provision.
• Built-in RS485 and front optical port enable flexible communications.
• Includes three Rogowski coils, Ø150 mm, 2 m cables, up to 3000 A.
• Harmonic analysis up to the 15th order for power quality insights.
• Class 1 active and Class 2 reactive energy accuracy per IEC/EN.
• Rated Ui 600 V and Uimp 9.5 kV for robust insulation performance.
• Expandable architecture supports future metering and monitoring needs.

Technical Specification

• Product type designation: DMG611
• Rated insulation voltage Ui (IEC/EN): 600 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 350 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG611R3000 multifunction digital metering instrument
• Three Rogowski coils, Ø150 mm, 2 m cable length
• Panel mounting hardware
• Quick start guide / user instructions

Applications

• Flush-mounted panels requiring multifunction digital metering and analysis
• Installations needing current measurement via Rogowski coils up to 3000 A
• Systems integrating RS485 or optical port communications
• Sites monitoring harmonics up to the 15th order
• Environments operating between -20 and +60 °C

Safety note: Install and commission only by qualified personnel. Observe voltage and impulse ratings, use the correct auxiliary supply, and isolate all circuits before fitting Rogowski coils or wiring.
