DMG611R0500 - DMG611 WITH 3 ROGOWSKI COILS

Why Choose the DMG611R0500?

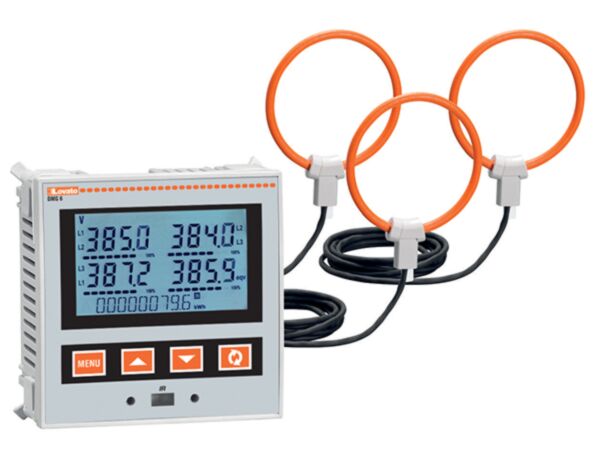

Designed for panel builders and energy monitoring, the Lovato DMG611R0500 multifunction digital metering instrument delivers precise, expandable measurement in a compact, flush‑mount format. A 72 x 46 mm backlit icon LCD provides clear readouts, while RS485 and a front optical port simplify integration. Supplied with three Ø50 mm Rogowski coils (2 m), it measures currents up to 500 A with effortless installation and minimal panel depth.

Class 1 active energy and Class 2 reactive energy accuracy, plus harmonic analysis to the 15th order, equip the DMG611 platform for reliable power and energy insight. Rated Ui 600 V and Uimp 9.5 kV, it operates from −20 to +60 °C and meets IEC/EN 61010-1, 61010-2-030, 61000-6-2 and 61000-6-3. A wide auxiliary supply (100–440 VAC / 120–250 VDC) supports flexible installation.

Key Benefits

• Flush mounting design with clear 72 x 46 mm backlit LCD.
• Accurate Class 1 active and Class 2 reactive energy measurement.
• Built-in RS485 plus front optical port for easy integration.
• Measures up to 500 A using included Rogowski coils.
• Harmonic analysis up to the 15th order for power insight.
• Expandable platform to support evolving monitoring needs.
• Wide auxiliary supply range for flexible installations.
• Robust insulation: Ui 600 V and Uimp 9.5 kV.

Technical Specification

• Product type designation: DMG611
• Rated insulation voltage Ui (IEC/EN): 600 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 350 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG611R0500 multifunction digital metering instrument
• Three Rogowski coils (Ø50 mm, 2 m cable)
• Flush-mount fixing hardware
• User documentation

Applications

• Industrial and commercial switchboards and distribution panels
• Energy monitoring and submetering in buildings and facilities
• OEM and machine control panels requiring accurate metering
• Power quality overview with harmonic analysis up to 15th order

Safety note: Install and commission only by qualified personnel. Always isolate the supply before wiring, follow applicable IEC/EN standards, and use appropriate protective equipment during installation and maintenance.
