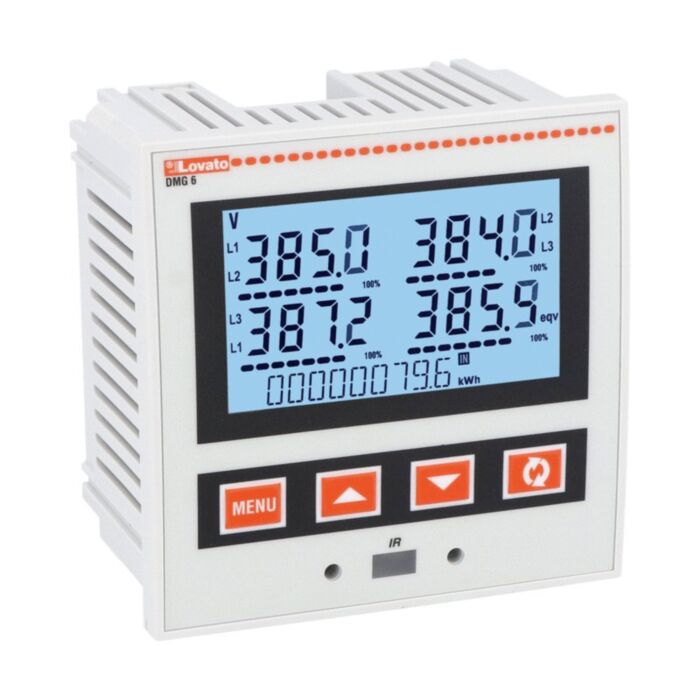

DMG610 - FLUSH MOUNT DIG. METER96X96 100/440VAC
MPN: DMG610
Special Price
£329.52
£274.60
Regular Price
£387.67
Why Choose the DMG610?
The Lovato DMG610 is a multifunction digital metering instrument designed for precise power monitoring in panels requiring flush mounting. With a built-in RS485 communication port, flexible CT /5A /1A current connection, and IEC-compliant accuracy (Class 1 active energy, Class 2 reactive), the DMG610 delivers reliable measurement. It also supports current harmonic analysis to the 15th order and is expandable to suit evolving system requirements.
Engineered for demanding environments, the DMG610 offers a rated insulation voltage Ui of 600 V and an impulse withstand Uimp of 9.5 kV. Operating from −20 to +60 °C with storage from −30 to +80 °C, it suits varied sites. Conformity includes IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61000-6-2 and IEC/EN 61000-6-3, plus UL and CSA, with sustainability certification, making it a robust, standards-aligned choice.
Key Benefits
- Class 1 active energy accuracy per IEC/EN 62053-21
- Class 2 reactive energy accuracy per IEC/EN 62053-23
- Built-in RS485 for straightforward system integration
- Flexible CT /5A /1A current connection options
- Flush mounting for neat, space-efficient panel installation
- Current harmonic analysis up to the 15th order
- Robust Ui 600 V and Uimp 9.5 kV ratings
- Expandable architecture to adapt to future needs
Technical Specification
- Product type designation: DMG610
- Rated insulation voltage Ui (IEC/EN): 600 V
- Rated impulse withstand voltage Uimp: 9.5 kV
- Weight: 350 g
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
What’s Included
- Lovato DMG610 multifunction digital metering instrument
- Flush mounting hardware
- Quick start guide
- Safety and compliance information
Applications
- Building energy monitoring and sub-metering
- Industrial and commercial switchboards requiring flush-mounted metering
- Integration with RS485 supervisory or BMS networks
- OEM control panels needing CT /5A or /1A inputs
- Sites requiring current harmonic analysis up to the 15th order
Frequently Asked Questions
Does the DMG610 include a communication interface?
Yes, it has a built-in RS485 communication port.
How is the DMG610 installed?
It is designed for flush mounting.
What current inputs does the DMG610 support?
It accepts CT connections for /5A or /1A secondary currents.
What are the energy accuracy classes?
Active energy is Class 1 (IEC/EN 62053-21); reactive energy is Class 2 (IEC/EN 62053-23).
Is the DMG610 expandable?
Yes, the instrument is expandable.
Safety note: Installation and servicing must be performed by qualified personnel with power isolated. Observe applicable IEC/EN 61010 standards and device ratings, and follow the manufacturer’s documentation.
| Manufacturer Part Number | DMG610 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90303100 |
| Barcode | 8013975211151 |
