DMG600 - FLUSH MOUNT DIG. METER96X96 100/440VAC

Why Choose the DMG600?

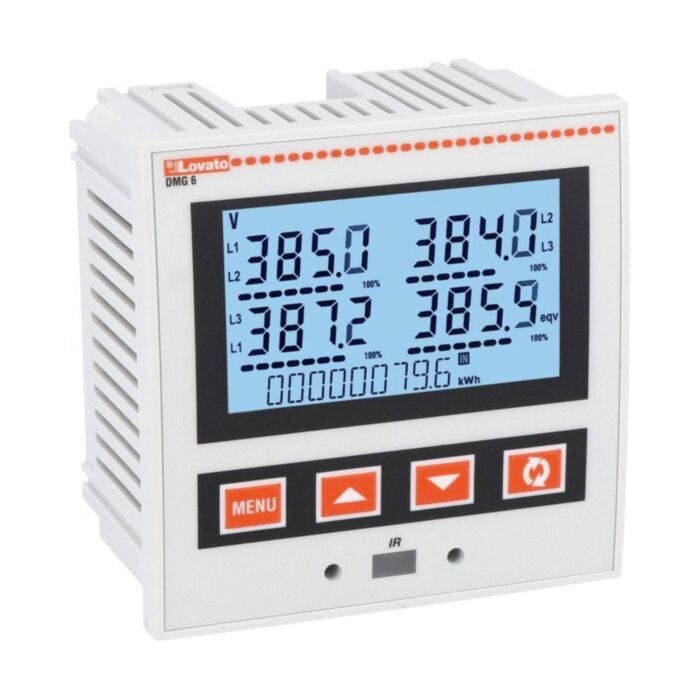

The Lovato DMG600 is a multifunction digital metering instrument designed for precise electrical monitoring across industrial and commercial installations. With flush mounting, CT /5A /1A current connection, Class 1 active energy accuracy and Class 2 reactive energy, it delivers dependable readings for power and energy parameters. Integrated 15th‑order current harmonic analysis supports essential power quality insight, while recognised IEC/EN metering standards underpin trustworthy performance in control panels and switchboards.

Robust insulation ratings—Ui 600 V and 9.5 kV impulse withstand—offer strong dielectric protection in demanding environments. Operating from -20 to +60 °C and storing from -30 to +80 °C, the DMG600 adapts to varied UK site conditions. It has no built‑in communication port but is expandable for integration needs, conforms to IEC/EN 61010 series and EMC standards, meets UL/CSA requirements, and carries Sustainability certification.

Key Benefits

• Flush mounting for tidy integration in switchboards and panels.
• CT /5A /1A inputs accommodate common current transformer ratings.
• Class 1 active energy accuracy ensures reliable energy measurement.
• Class 2 reactive energy accuracy supports power factor management.
• 15th-order harmonic analysis assists basic power quality diagnostics.
• Rated insulation 600 V and 9.5 kV Uimp enhance safety margin.
• Wide -20 to +60 °C operating range suits varied site conditions.
• Expandable architecture enables future functionality without replacement.

Technical Specification

• Product type designation: DMG600
• Rated insulation voltage Ui (IEC/EN): 600 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Weight: 300 g
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C

What’s Included

• Lovato DMG600 multifunction digital metering instrument
• Panel mounting hardware
• Quick start guide and safety information
• Product documentation

Applications

• Industrial control panels and motor control centres
• Commercial switchboards and distribution boards
• Energy monitoring in plant rooms and facilities
• Generator, UPS, and backup power monitoring panels
• HVAC and building services electrical panels

Safety note: Installation and maintenance should be performed by qualified personnel. Always de‑energise circuits and follow applicable standards and CT handling practices before work.
