DMG300 - MOD LCD MULTIMETER EXP OPTIC I/F
MPN: DMG300
Special Price
£514.31
£428.59
Regular Price
£605.06
Why Choose the DMG300?

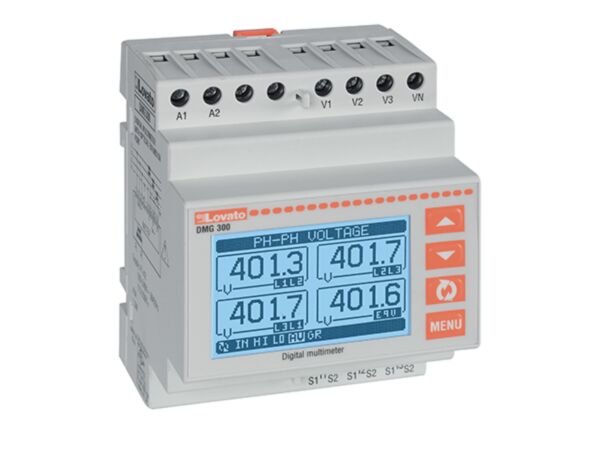

The Lovato DMG300 is a multifunction digital metering instrument for DIN rail mounting, ideal for panel and switchboard measurements. Supporting CT /5A /1A connections and 31st-order harmonic analysis, it delivers precise active energy measurement to Class 0.5s (IEC/EN 62053-22) and reactive energy to Class 2 (IEC/EN 62053-23). SKU DMG300 combines robust insulation ratings with an expandable design to scale with your monitoring needs.
Engineered for demanding environments, the DMG300 offers Ui 690 V and Uimp 9.5 kV, with an operating range from -20 to +60 °C and 320 g weight. It features no built-in communication port yet remains expandable, enabling system growth as required. Conformity includes IEC/EN 61010-1, 61000-6-2 and 61000-6-4, plus UL508 and CSA C22.2 n°14, supporting reliable integration in industrial applications.
Key Benefits
- DIN rail mounting simplifies panel integration and retrofit projects.
- Class 0.5s active energy accuracy to IEC/EN 62053-22.
- Reactive energy Class 2 compliance to IEC/EN 62053-23.
- CT /5A /1A inputs suit common transformer secondary ratings.
- 31st-order harmonic analysis for enhanced power quality assessment.
- Expandable architecture to add functionality as needs evolve.
- High insulation levels: Ui 690 V and Uimp 9.5 kV.
- Wide operating range from -20 to +60 °C.
Technical Specification
- Product type designation: DMG300
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 9.5 kV
- Weight: 320 g
- Operating temperature: -20 to +60 °C
- Storage temperature: -30 to +80 °C
What’s Included
- Lovato DMG300 meter (main unit)
- Quick start/user documentation
- Integral provisions for DIN rail mounting
- Safety and installation information leaflet
Applications
- Industrial and commercial switchboards for multi-circuit monitoring
- Power distribution panels in factories and process plants
- Energy measurement in commercial buildings and facilities
- OEM machinery control panels and MCCs
- Utility and infrastructure sub-panels requiring harmonic analysis
Frequently Asked Questions
What installation method does the DMG300 support?
It is designed for DIN rail mounting, making panel installation straightforward.
Which current transformer secondary ratings are compatible?
The DMG300 supports CT /5A and /1A current transformer connections.
What accuracy classes does it meet for energy measurement?
Active energy is Class 0.5s to IEC/EN 62053-22; reactive energy is Class 2 to IEC/EN 62053-23.
Does the DMG300 have a built-in communication port?
No, it has no built-in communication port. However, the unit is expandable.
What environmental and insulation ratings does it offer?
It operates from -20 to +60 °C and features Ui 690 V with Uimp 9.5 kV.
Safety note: Installation should be performed by qualified personnel. Always isolate power before wiring, observe the rated insulation and impulse withstand voltages, and follow the applicable standards and instructions.
| Manufacturer Part Number | DMG300 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90303100 |
| Barcode | 8013975179659 |
