DMG200L01 - MOD LCD MULTIMETER
MPN: DMG200L01
Special Price
£346.00
£288.33
Regular Price
£407.05
Why Choose the DMG200L01?

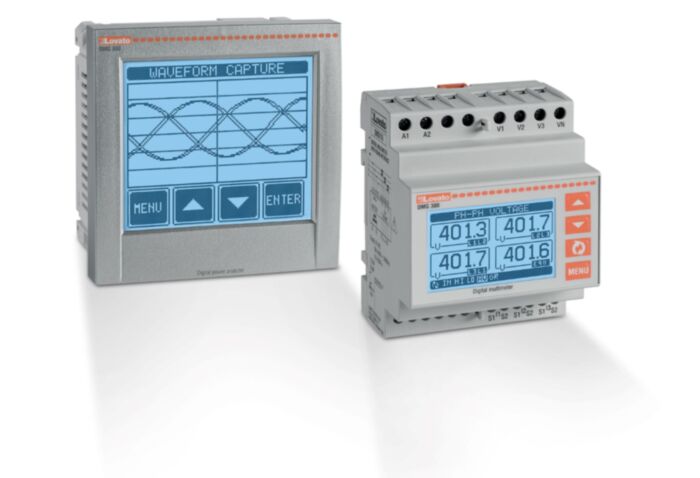

The Lovato DMG200L01 is a modular LCD multimeter designed for DIN rail mounting in industrial and commercial panels. As part of Lovato’s multifunction digital metering instruments, SKU DMG200L01 features a clear graphic 128x80 pixel LCD and a CT /5A current connection. It accepts a wide auxiliary supply of 100–240VAC or 110–250VDC, supporting reliable measurement where flexible powering and straightforward panel integration are essential.
Engineered for dependable compliance, it measures active energy to Class 1 (IEC/EN 62053-21) and reactive energy to Class 2 (IEC/EN 62053-23), with THD-only harmonic analysis. The device is non-expandable and has no built-in communication port, simplifying selection and installation. Multilingual operation covers English, Czech, Polish, German and Russian, with conformity to IEC/EN 61010-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, UL508 and CSA C22.2 n°14.
Key Benefits
- Clear graphic 128x80 pixel LCD enhances readability in panel environments.
- Wide auxiliary supply 100–240VAC/110–250VDC for flexible installation.
- DIN rail mounting simplifies integration into standard enclosures.
- CT /5A connection suits common current transformer installations.
- Class 1 active energy and Class 2 reactive energy accuracy.
- THD-only harmonic analysis provides quick distortion overview.
- Multilingual interface: English, Czech, Polish, German and Russian.
- Non-expandable design with no communication port reduces configuration complexity.
Technical Specification
- Type of product: Multifunction digital metering instruments
- Type of installation: DIN rail mounting
- Type of current connection: CT /5A
- Accuracy active energy measurement: Class 1 (IEC/EN 62053-21)
- Reactive energy: Class 2 (IEC/EN 62053-23)
- Current harmonic analysis: THD only
- Built-in communication port: No
- Expandable: No
What’s Included
- DMG200L01 modular LCD multimeter
- Multilingual user instructions
- Configuration and safety documentation
Applications
- Distribution boards and switchgear panel metering
- Energy monitoring using CT /5A secondary circuits
- Facilities requiring multilingual operator displays
- Sites needing THD overview for power quality checks
- DIN rail retrofits requiring modular LCD metering
Frequently Asked Questions
What auxiliary supply does the DMG200L01 require?
It operates from 100–240VAC or 110–250VDC auxiliary supply.
Does the DMG200L01 have a built-in communication port?
No, it has no built-in communication port.
Can the DMG200L01 be expanded with additional modules?
No, the device is non-expandable.
What current input type is supported?
It uses a CT /5A current connection.
What accuracy and harmonic analysis are provided?
Active energy is Class 1 and reactive energy Class 2; harmonic analysis is THD only.
Safety note: Install and commission only by qualified personnel. De-energise circuits before wiring and follow IEC/EN 61010-1 and local regulations.
| Manufacturer Part Number | DMG200L01 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90303100 |
| Barcode | 8013975188217 |
