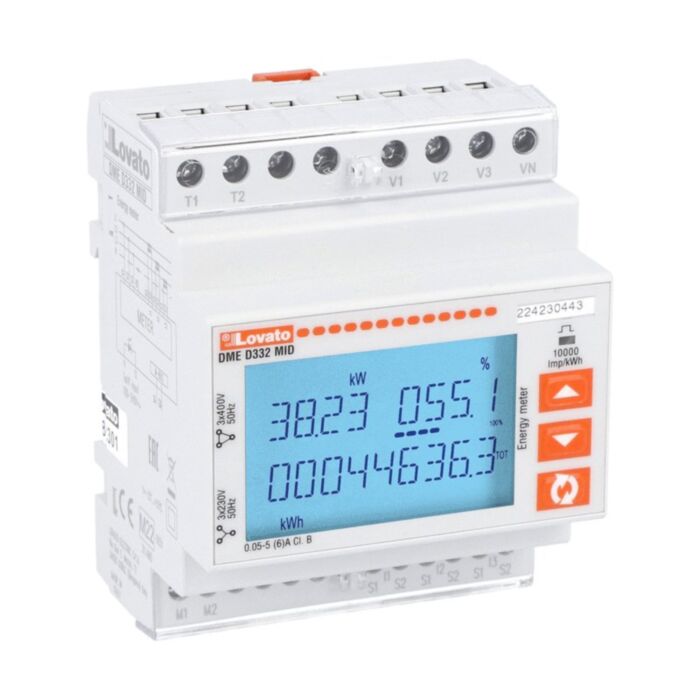

DMED332MID - 3PH ENERGY METER C/W OR W/O NEUTRAL CT 5A MID MBUS

Why Choose the DMED332MID?

Lovato’s DMED332MID is a three-phase energy meter designed for precise import/export monitoring in switchboards and distribution panels. DIN rail mounting and a CT /5A current connection streamline installation, while a built-in M-Bus port enables easy integration with metering networks. Class B accuracy for active energy (EN 50470-3) and Class 2 for reactive energy (IEC/EN 62053-23) deliver dependable readings, with MID certification covering imported active energy.

Engineered for reliability, the DMED332MID features 250 V rated insulation (Ui) and 6 kV impulse withstand (Uimp), with robust performance from -25 to +55 °C and storage to -25 to +70 °C. Weighing 332 g and suitable up to 2000 m altitude, it conforms to EN50470-1, EN50470-3 and TR 50579. A clear scope - no harmonic analysis or expandability - keeps focus on accurate imported/exported energy measurement across demanding commercial and industrial applications.

Key Benefits

• Three-phase energy metering with CT /5A current connection.
• DIN rail mounting simplifies integration in control panels.
• Measures imported/exported active and reactive energy.
• Class B active energy and Class 2 reactive accuracy.
• Built-in M-Bus port for easy networked data collection.
• MID certified for imported active energy compliance.
• Wide operating temperature range -25 to +55 °C.
• 6 kV impulse withstand for electrical surge resilience.

Technical Specification

• Product type designation: DMED332MID
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 332 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C
• Max altitude: 2000 m

What’s Included

• Lovato DMED332MID three-phase energy meter
• Quick start and safety information
• DIN rail mounting instructions

Applications

• Three-phase sub-metering in commercial and industrial panels
• Energy monitoring in DIN rail switchboards with CT/5A inputs
• Networked metering over M-Bus in multi-tenant buildings
• Import/export energy tracking for compliance and reporting

Safety note: Installation and commissioning must be performed by qualified personnel. Isolate all supplies before wiring, observe CT /5A polarity, and follow applicable standards and local regulations. Operate within the specified voltage, temperature and altitude limits.
