DMED330MID - 3PH ENERGY METER C/W OR W/O NEUTRAL CT 5A MID
MPN: DMED330MID
Special Price
£301.22
£251.02
Regular Price
£354.37
Why Choose the DMED330MID?

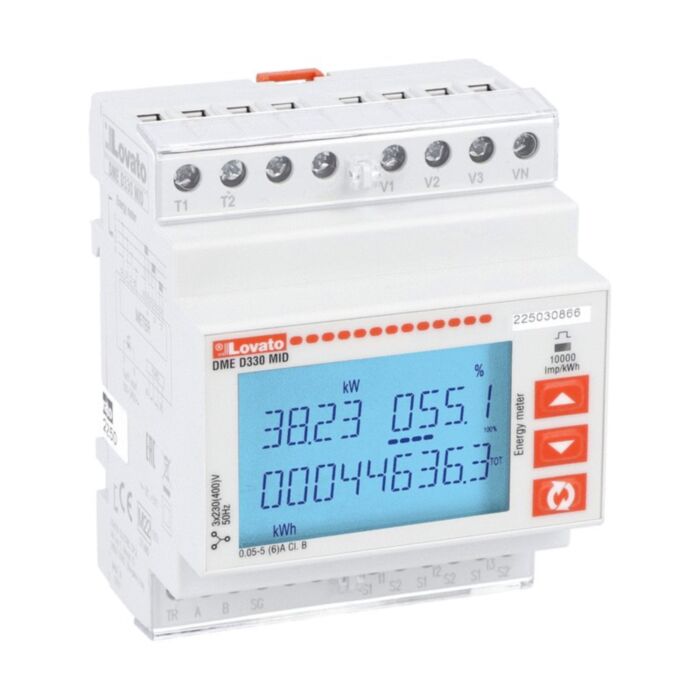

Lovato’s DMED330MID is a three‑phase energy meter for accurate imported/exported active and reactive energy monitoring. Designed for DIN rail mounting with CT/5A current inputs, it delivers Class B (EN 50470‑3) active energy accuracy and Class 2 (IEC/EN 62053‑23) reactive measurement. A built‑in RS485 port streamlines integration with supervision systems, while MID certification covers imported active energy for compliant sub‑metering and reporting.
Engineered for reliability, it withstands 6 kV impulse voltage and offers 250 V rated insulation. Operating from −25 to +55 °C up to 2000 m altitude, the 332 g unit suits demanding panels. IEC Imax is 6 A on the secondary, with no current harmonic analysis and no expandability. Conformity includes EN50470‑1, EN50470‑3 and TR 50579 for assured performance and traceability.
Key Benefits
- MID-certified for imported active energy to support compliant sub‑metering.
- Accurate Class B active energy and Class 2 reactive measurement.
- CT/5A connection suits standard secondary current transformers.
- Built‑in RS485 port for integration with monitoring systems.
- DIN rail mounting simplifies installation in distribution panels.
- Robust 6 kV impulse withstand and 250 V insulation rating.
- Wide operating range from −25 to +55 °C, up to 2000 m.
Technical Specification
- Product type designation: DMED330MID
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 332 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
- Max altitude: 2000 m
What’s Included
- Lovato DMED330MID three-phase energy meter
- User and installation documentation
- Warranty information
- Protective packaging
Applications
- Tenant and departmental sub‑metering for imported active energy billing
- Industrial and commercial distribution panel monitoring
- Energy management systems via RS485 networking
- Import/export energy tracking on sites with on‑site generation
- Retrofit projects using existing CT/5A secondary transformers
Frequently Asked Questions
Is the DMED330MID MID certified?
Yes. It is MID certified for imported active energy.
What communication interface does it provide?
It includes a built‑in RS485 communication port.
Which current transformers does it use?
It connects via CT /5A secondary current transformers.
What are the accuracy classes?
Active energy is Class B (EN 50470‑3); reactive is Class 2 (IEC/EN 62053‑23).
Can it be expanded or perform harmonic analysis?
No. The device is not expandable and does not support current harmonic analysis.
Safety note: Install and commission only by qualified personnel. De‑energise circuits before wiring, use CT/5A connections as specified, and observe applicable standards and environmental limits.
| Manufacturer Part Number | DMED330MID |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975230657 |
