DMED310T2MID - 3PH C/W OR W/O NEUTRAL 5A 2OUT PROG. DIG
MPN: DMED310T2MID
Special Price
£259.86
£216.55
Regular Price
£305.72
Why Choose the DMED310T2MID?

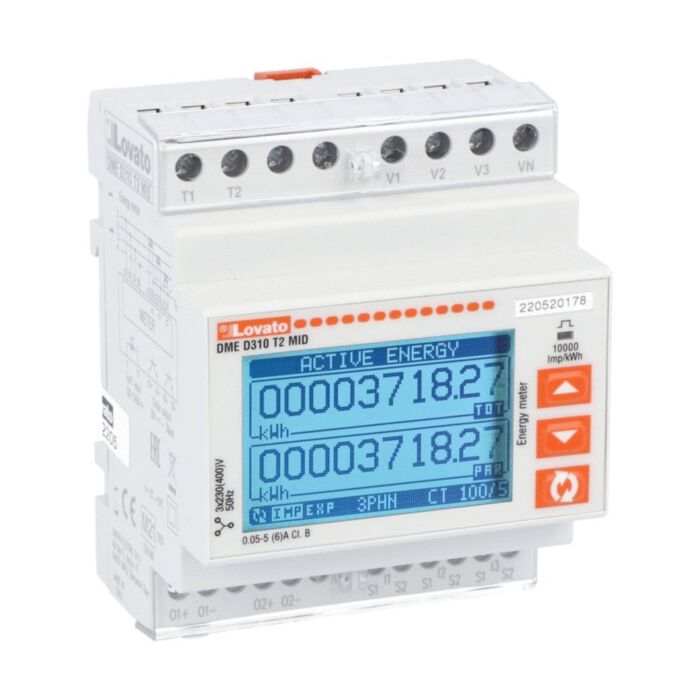

Lovato’s DMED310T2MID is a three-phase energy meter for accurate sub‑metering and compliance in commercial and industrial panels. It mounts on DIN rail and uses CT /5A connections for easy retrofit. MID certification with Class B (EN 50470‑3) active energy and Class 2 reactive energy measurement ensures dependable import/export metering across three‑phase loads and generation.
Built for resilient performance, the meter offers 250 V rated insulation, 6 kV impulse withstand, and reliable operation from -25 to +55 °C up to 2000 m altitude. Standalone by design with no built‑in communication port, yet expandable, it conforms to EN50470-1, EN50470-3 and TR 50579, making it a robust choice for multi-tenant billing and energy monitoring projects.
Key Benefits
- MID certified for billing-grade metering in compliant UK and EU applications.
- Class B (EN 50470-3) active energy accuracy for dependable measurements.
- Measures imported/exported active and reactive energy on three-phase systems.
- CT /5A connection enables straightforward retrofit with existing 5 A CTs.
- DIN rail mounting simplifies panel integration and saves enclosure space.
- Robust 6 kV impulse withstand and 250 V insulation for durability.
- Wide -25 to +55 °C operating range; suitable up to 2000 m altitude.
- Expandable architecture to support future system enhancements.
Technical Specification
- Product type designation: DMED310T2MID
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 332 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
- Max altitude: 2000 m
What’s Included
- Lovato DMED310T2MID three-phase energy meter
- Installation and safety instructions
- Product datasheet/technical documentation
Applications
- Commercial and industrial sub‑metering and cost allocation
- Import/export metering for grid‑connected systems using 5 A CTs
- Retrofit energy monitoring in DIN rail switchboards
- Three‑phase load and generation metering in panels
Frequently Asked Questions
Is the DMED310T2MID MID certified?
Yes. The DMED310T2MID is MID certified for compliant metering.
What installation method does it support?
It is designed for DIN rail mounting in control panels.
What current input does the meter use?
It uses CT /5A connections, with an IEC Imax of 5 A.
Which types of energy does it measure?
It measures imported/exported active energy and imported/exported reactive energy.
Does it have a built-in communication port?
No, it has no built-in communication port. The device is expandable.
Safety note: Install and commission only by qualified personnel. Isolate supply before work, observe the rated insulation and impulse withstand limits, and operate within specified temperature and altitude ranges.
| Manufacturer Part Number | DMED310T2MID |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975199916 |
