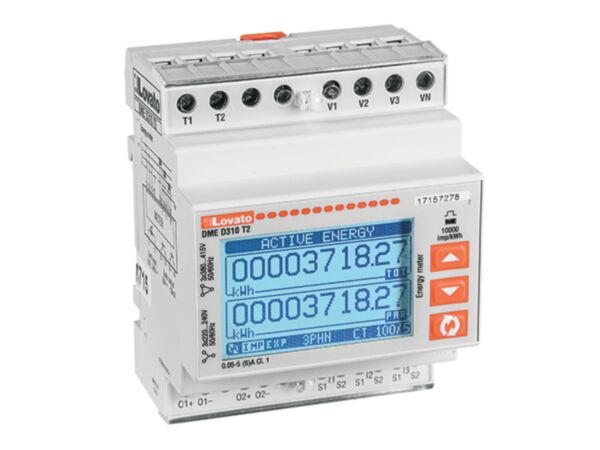

DMED310T2 - 3PH C/W OR W/O NEUTRAL 5A 2OUT PROG. DIG
MPN: DMED310T2
Special Price
£227.38
£189.48
Regular Price
£267.50
Why Choose the DMED310T2?
Designed for accurate three-phase monitoring, the Lovato DMED310T2 energy meter delivers Class 1 active and Class 2 reactive energy measurement. The SKU DMED310T2 supports CT/5A connections and DIN rail mounting for straightforward panel integration. It records imported and exported active/reactive energy and operates from -25 to +55 °C, suiting varied environments and aligning with IEC/EN 62053-21 and 62053-23 accuracy classifications.
With a robust 6 kV impulse withstand and 250 V rated insulation, this DIN-rail unit is built for reliable service. It is expandable for future needs and complies with IEC/EN 61010-1, 61010-2-030 and 50470-1. There is no built-in communication port, simplifying deployment. Weighing 332 g, it handles -25 to +55 °C operation and -25 to +70 °C storage, ideal for plant rooms and control panels.
Key Benefits
- Class 1 active energy and Class 2 reactive energy accuracy.
- Measures imported and exported active and reactive energy.
- CT/5A current connection for use with standard current transformers.
- DIN rail mounting for fast, tidy installation in panels.
- 6 kV impulse withstand and 250 V insulation enhance robustness.
- Operating temperature range -25 to +55 °C for challenging sites.
- Expandable design to support evolving monitoring requirements.
Technical Specification
- Product type designation: DMED310T2
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 332 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
What’s Included
- Lovato DMED310T2 three-phase energy meter
- Quick start guide / datasheet
- Manufacturer packaging
Applications
- Industrial control panels and switchboards using CT/5A measurement
- Commercial building submetering for energy monitoring and allocation
- Plant rooms and HVAC distribution boards on three-phase supplies
- Import/export monitoring at the distribution level for energy management
Frequently Asked Questions
Is the Lovato DMED310T2 MID certified?
No, it is not MID certified, so use it for monitoring rather than billing.
What type of current input does the DMED310T2 accept?
It uses CT/5A secondary inputs, compatible with standard 5 A current transformers.
Does this meter have a built-in communication port?
No. There is no built-in communication port on this model.
What are the measurement accuracy classes?
Active energy is Class 1 per IEC/EN 62053-21; reactive energy is Class 2 per IEC/EN 62053-23.
How is the DMED310T2 installed?
It is designed for DIN rail mounting for straightforward panel integration.
Safety note: Install and commission only by qualified personnel. Isolate all supplies and follow IEC/EN standards and local regulations. Use correct CT ratios, observe ratings, and consult the product documentation before energising.
| Manufacturer Part Number | DMED310T2 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975182161 |
