DMED305T2MID - MOD. (4U) 3PH ENERGY METER /5A 2OUTS MID
MPN: DMED305T2MID
Special Price
£310.42
£258.68
Regular Price
£365.20
Why Choose the DMED305T2MID?

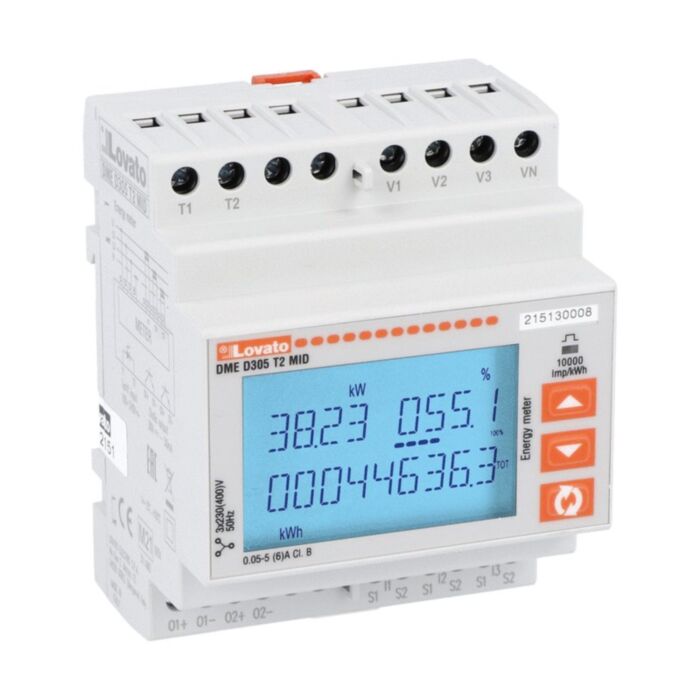

The Lovato DMED305T2MID is a three-phase energy meter for DIN rail mounting, designed for CT/5A installations. It measures imported and exported active energy and imported and exported reactive energy with Class B (EN 50470-3) active accuracy and Class 2 reactive measurement. MID certification applies to imported active energy, supporting compliant sub-billing. With 250 V rated insulation and 6 kV impulse withstand, the DMED305T2MID delivers reliable metering in industrial and commercial panels.
Engineered for straightforward integration, this standalone meter has no built-in communication port or expansion, keeping installation simple and costs controlled. It operates from -25 to +55 °C up to 2000 m altitude and weighs 332 g. Compliance with EN50470-1, EN50470-3 and TR 50579 underpins trustworthy readings across industrial switchboards, commercial distribution and sub-metering projects using 5 A secondary CTs.
Key Benefits
- True three-phase metering for imported/exported active and reactive energy.
- DIN rail mounting simplifies panel installation and maintenance.
- CT /5A connection suits standard 5 A secondary current transformers.
- MID-certified for imported active energy to support compliant billing.
- Class B active energy accuracy; Class 2 reactive measurement.
- Robust 250 V insulation and 6 kV impulse withstand.
- Reliable operation from -25 to +55 °C, up to 2000 m altitude.
- Complies with EN50470-1, EN50470-3 and TR 50579 standards.
Technical Specification
- Product type designation: DMED305T2MID
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 332 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
- Max altitude: 2000 m
What’s Included
- Lovato DMED305T2MID three-phase energy meter
- Installation and safety instructions
- Protective packaging
Applications
- Commercial and industrial three-phase distribution boards and switchgear
- Sub-metering with CT /5A in plant rooms and service risers
- MID-compliant imported active energy billing and cost allocation
- Monitoring of exported energy from on-site generation to loads
- Retrofit energy audits where DIN rail mounting is required
Frequently Asked Questions
Is the DMED305T2MID MID certified?
Yes. MID certification applies to imported active energy.
Does this meter have a built-in communication port?
No. It has no built-in communication port and is not expandable.
What current inputs does it support?
It uses CT /5A secondary inputs with an IEC maximum current of 5 A.
Which types of energy does it measure?
It measures imported/exported active energy and imported/exported reactive energy. Only imported active energy is MID certified.
What are the operating conditions and standards compliance?
It operates from -25 to +55 °C and conforms to EN50470-1, EN50470-3 and TR 50579.
Safety note: Installation must be performed by qualified personnel. Isolate circuits before work, short CT secondaries during wiring, and operate within the stated electrical, temperature and altitude ratings.
| Manufacturer Part Number | DMED305T2MID |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975230787 |
