DMED305T2 - MOD. (4U) 3PH ENERGY METER /5A 2OUTS
MPN: DMED305T2
Special Price
£277.40
£231.17
Regular Price
£326.35
Why Choose the DMED305T2?

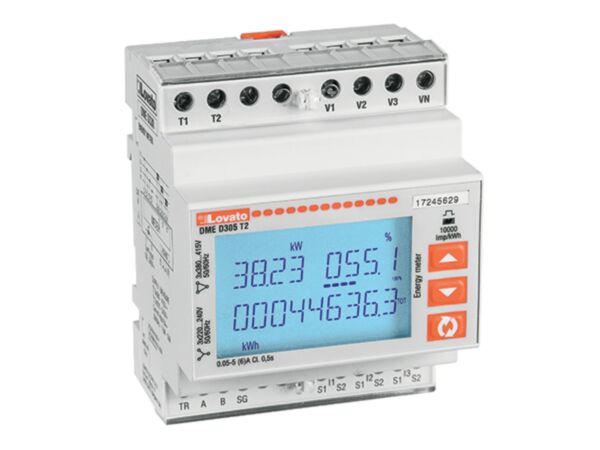

Lovato DMED305T2 is a three-phase energy meter designed for DIN rail mounting with CT /5A or /1A inputs. It measures imported and exported active energy with Class 0.5s accuracy (IEC/EN 62053-22), plus imported/exported reactive energy to Class 2 (IEC/EN 62053-23). Rated Ui 250 V and Uimp 6 kV, DMED305T2 suits panels requiring reliable, standards-compliant metering.
Built for straightforward standalone use, this meter has no built-in communication port and is not expandable, making specification simple. Operating from -25 to +55 °C with -25 to +70 °C storage tolerance, and weighing 332 g, it complies with IEC/EN 61010-1, 61010-2-030 and 50470-1 for dependable installation in industrial and commercial boards.
Key Benefits
- Accurate active energy, Class 0.5s to IEC/EN 62053-22.
- Measures imported/exported active and reactive energy flows.
- DIN rail mounting for fast, space-efficient panel integration.
- Flexible CT secondary inputs: /5A and /1A.
- Robust insulation: Ui 250 V, Uimp 6 kV.
- Wide operating temperature: -25 to +55 °C.
- Standards compliance: IEC/EN 61010-1, 61010-2-030, 50470-1.
Technical Specification
- Product type designation: DMED305T2
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 332 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
What’s Included
- Lovato DMED305T2 three-phase energy meter
- Manufacturer documentation (installation and safety information)
Applications
- Industrial and commercial three-phase distribution panels
- Sub-metering for import/export energy monitoring via CTs
- Energy allocation in plant rooms and switchboards
- Retrofit monitoring on DIN rail in existing enclosures
Frequently Asked Questions
Is the DMED305T2 MID certified?
No, this model is not MID certified.
What CT secondary connections does it support?
It supports CT /5A and /1A current connections.
Does the meter have a built-in communication port?
No, there is no built-in communication port on this device.
What are the accuracy classes for energy measurement?
Active energy is Class 0.5s (IEC/EN 62053-22); reactive energy is Class 2 (IEC/EN 62053-23).
What operating temperature range is supported?
The operating range is -25 to +55 °C.
Safety note: Install and commission only by qualified personnel with power isolated, following manufacturer instructions and applicable IEC/EN standards.
| Manufacturer Part Number | DMED305T2 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975230770 |
