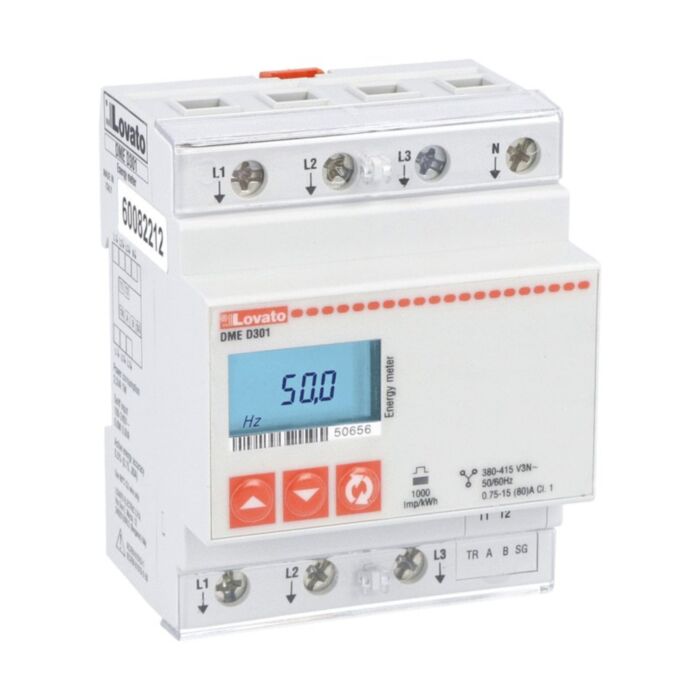

DMED301 - 3PH W/NEUTRAL DIGITAL METER 80A DIRECT
MPN: DMED301
Special Price
£259.86
£216.55
Regular Price
£305.72
Why Choose the DMED301?
Lovato’s DMED301 three-phase energy meter (SKU: DMED301) delivers precise monitoring for direct-connected installations up to 80 A. Designed for DIN rail mounting, it measures imported and exported active energy with Class 1 accuracy and reactive energy to Class 2. An RS485 interface enables integration with supervision systems, helping facilities track consumption and export across commercial and industrial panels.
Built to perform in demanding environments, DMED301 withstands a 6 kV impulse and offers 250 V rated insulation, operating reliably from -25 to +55 °C. Conforming to IEC/EN 61010-1, 61010-2-030 and 50470-1, it suits compliance-driven projects. Its straightforward, non-expandable design and direct connection simplify specification and installation while the absence of harmonic analysis keeps focus on accurate energy totals.
Key Benefits
- Class 1 active energy accuracy for dependable consumption reporting.
- Measures imported and exported active and reactive energy.
- Direct connection up to 80 A simplifies installation.
- DIN rail mounting for quick, tidy panel integration.
- RS485 communication port for easy system integration.
- 250 V insulation and 6 kV impulse withstand for resilience.
- Wide operating temperature range from -25 to +55 °C.
Technical Specification
- Product type designation: DMED301
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 360 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
What’s Included
- Lovato DMED301 three-phase energy meter
- Installation and user manual
- Safety and compliance documentation
Applications
- Commercial and industrial three-phase energy monitoring
- Import/export measurement for sites with on-site generation
- Non-billing submetering and cost allocation in facilities
- Distribution board and control panel integration
- Tracking reactive energy for power factor awareness
Frequently Asked Questions
Is the Lovato DMED301 MID certified?
No, this model is not MID certified.
What is the maximum current rating for the DMED301?
It supports direct connection up to 80 A (Imax).
Does the DMED301 provide RS485 communication?
Yes, it includes a built-in RS485 communication port.
Can the DMED301 perform current harmonic analysis?
No, current harmonic analysis is not supported.
What is the operating temperature range?
Operating range is -25 to +55 °C; storage is -25 to +70 °C.
Safety note: Install and commission by qualified personnel only. Isolate all power sources before wiring or maintenance and follow applicable IEC/EN standards and the manufacturer’s instructions.
| Manufacturer Part Number | DMED301 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975227428 |
