DMED300T2MID - 3PH W/NEUTRAL DIGITAL METER 63A 2PROGRAM
MPN: DMED300T2MID
Special Price
£245.90
£204.92
Regular Price
£289.30
Why Choose the DMED300T2MID?

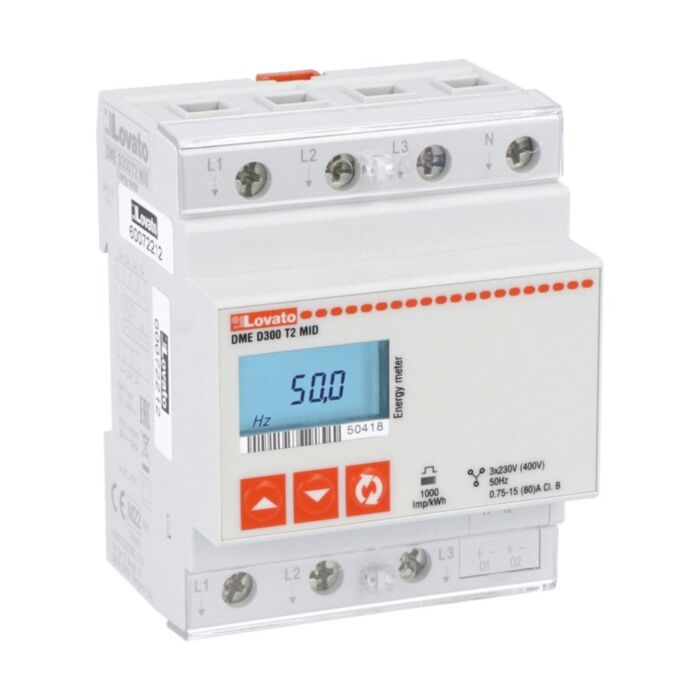

Lovato’s DMED300T2MID is a three-phase energy meter for DIN rail mounting, designed for direct connection up to 80 A. It measures imported and exported active energy and reactive energy, supporting accurate monitoring across three-phase loads. MID certification applies to imported active energy, helping with billing compliance. With a DIN rail format and clear specifications, it fits neatly into commercial and light industrial distribution boards.
Delivering dependable accuracy, the meter meets Class B for active energy (EN 50470-3) and Class 2 for reactive energy (IEC/EN 62053-23). Electrical robustness includes Ui 250 V insulation and 6 kV impulse withstand. Rated for -25 to +55 °C operation and 2000 m altitude, it suits challenging sites. There is no built-in communication port or expandability, and no current harmonic analysis, keeping specification straightforward and secure.
Key Benefits
- MID certified for imported active energy to support billing compliance.
- Direct connection up to 80 A simplifies three-phase installations.
- DIN rail mounting integrates neatly into standard distribution boards.
- Measures imported and exported active and reactive energy bidirectionally.
- Class B active energy accuracy per EN 50470-3 assures dependable readings.
- Reactive energy accuracy Class 2 to IEC/EN 62053-23.
- Robust 6 kV impulse withstand and 250 V insulation rating.
- Wide -25 to +55 °C operating range for varied environments.
Technical Specification
- Product type designation: DMED300T2MID
- Rated insulation voltage Ui (IEC/EN): 250 V
- Rated impulse withstand voltage Uimp: 6 kV
- Weight: 360 g
- Operating temperature: -25 to +55 °C
- Storage temperature: -25 to +70 °C
- Max altitude: 2000 m
What’s Included
- Lovato DMED300T2MID three-phase energy meter
- Installation and user instructions
- Manufacturer datasheet (PDF)
Applications
- Sub-metering of three-phase loads up to 80 A direct connection
- Tenant billing of imported active energy (MID compliant)
- Monitoring imported/exported energy in commercial and light industrial boards
- Energy allocation in DIN rail-equipped distribution panels
Frequently Asked Questions
Is the DMED300T2MID MID certified?
Yes, it is MID certified for imported active energy only.
What is the maximum current and connection type?
It is a direct-connection meter with IEC Imax of 80 A.
Does it include built-in communication or expansion options?
No, there is no built-in communication port and it is not expandable.
What accuracy classes does it meet?
Active energy is Class B per EN 50470-3; reactive energy is Class 2 per IEC/EN 62053-23.
Which standards does it conform to?
It conforms to EN50470-1, EN50470-3 and TR 50579.
Safety note: Install and commission only by qualified personnel. Isolate the supply before work, observe the stated current, voltage and temperature ratings, and follow all applicable standards and instructions.
| Manufacturer Part Number | DMED300T2MID |
|---|---|
| Manufacturer | Lovato |
| HS Code | 90283019 |
| Barcode | 8013975199909 |
