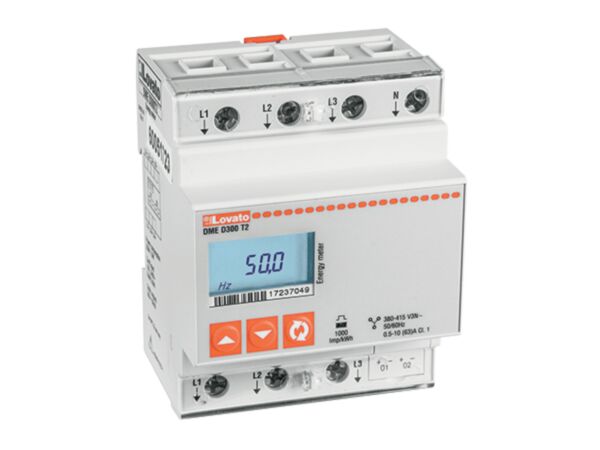

DMED300T2 - 3PH W/NEUTRAL DIGITAL METER 63A 2PROGRAM

Why Choose the DMED300T2?

Lovato's DMED300T2 is a three-phase energy meter designed for straightforward DIN rail mounting in switchboards and panels. With direct connection up to 80 A, it measures imported/exported active and reactive energy with Class 1 active accuracy and Class 2 reactive accuracy. Rated Ui 250 V and Uimp 6 kV, DMED300T2 offers robust performance for dependable sub-metering and energy monitoring across commercial and industrial installations.

Conforming to IEC/EN 61010-1, IEC/EN 61010-2-030 and IEC/EN 50470-1, this meter is engineered to work from -25 to +55 °C and weighs 360 g. It has no built-in communication port and is not expandable, making it a reliable standalone choice where simple, accurate measurement is required. Note: not MID certified, so use for monitoring and energy management rather than fiscal billing.

Key Benefits

• DIN rail mounting simplifies integration into switchboards and panels.
• Direct connection up to 80 A reduces installation complexity and cost.
• Measures imported/exported active and reactive energy for full bidirectional visibility.
• Class 1 active and Class 2 reactive accuracy support dependable monitoring.
• Rated impulse withstand 6 kV for resilience in transient conditions.
• Operates from -25 to +55 °C for varied site environments.
• Standards compliant: IEC/EN 61010-1, 61010-2-030, 50470-1.

Technical Specification

• Product type designation: DMED300T2
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 360 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C

What’s Included

• Lovato DMED300T2 three-phase energy meter
• Installation and safety instructions
• Manufacturer datasheet (downloadable)

Applications

• Sub-metering in commercial units, workshops, and industrial facilities
• Monitoring import/export energy on three-phase distribution boards
• Energy management in plant rooms and building services
• Load monitoring up to 80 A direct-connected circuits

Safety note: Always isolate power before installation and commissioning. Installation should be performed by a qualified electrician in accordance with IEC/EN standards and local regulations. Observe the stated voltage and temperature ratings.
