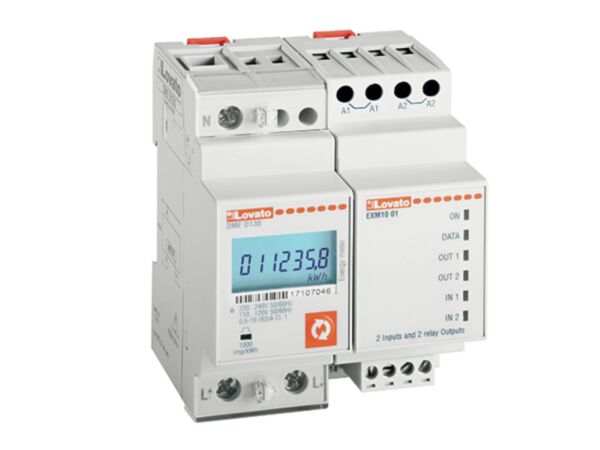

DMED130LM - 1PH DIGITAL METER 63A FOR LOAD MANAGEMENT

Why Choose the DMED130LM?

Lovato’s DMED130LM is a compact single-phase energy meter for DIN rail installations, designed for direct connection up to 63 A. It measures imported active and imported reactive energy with Class 1 and Class 2 accuracy respectively. Rated Ui 250 V with 6 kV impulse withstand, this meter suits reliable sub-metering applications where MID certification and communications are not required.

Conforming to IEC/EN 61010-1 and IEC/EN 50470-1, the meter operates from -25 to +55 °C and weighs just 148 g. With no built-in communication port, no expansion options and no current harmonic analysis, DMED130LM focuses on dependable measurement performance. A straightforward DIN rail form factor simplifies panel integration and ongoing monitoring of single-phase loads.

Key Benefits

• Single-phase direct connection simplifies DIN rail installation.
• Supports up to 63 A Imax per IEC rating.
• Measures imported active and reactive energy accurately.
• Class 1 active energy accuracy to IEC/EN 62053-21.
• Class 2 reactive energy per IEC/EN 62053-23.
• Robust Ui 250 V and 6 kV impulse withstand.
• Reliable operation from -25 to +55 °C ambient.
• Ideal where MID certification and communications are unnecessary.

Technical Specification

• Product type designation: DMED130LM
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 148 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C

What’s Included

• Lovato DMED130LM single-phase energy meter
• User documentation and safety information
• Downloadable datasheet

Applications

• Single-phase sub-metering in commercial and residential distribution boards
• Monitoring imported energy on light industrial circuits up to 63 A
• DIN rail panel installations without communication requirements
• Energy usage tracking where MID certification is not required
• Retrofits needing direct-connected meters with compact footprint

Safety note: Installation must be performed by qualified personnel. Isolate the supply before work, mount on a DIN rail, and observe IEC/EN 61010-1 guidance, insulation and impulse ratings, and the -25 to +55 °C operating range.
