DMED121MID - 1PH 1OUT PROG.DIGITAL METER 63A MULTI-METER MID

Why Choose the DMED121MID?

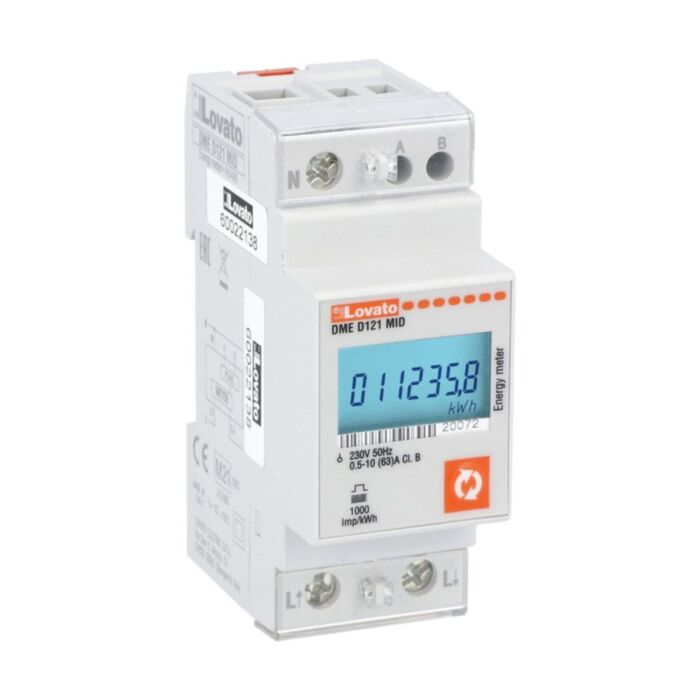

The Lovato DMED121MID is a compact single-phase energy meter for DIN rail mounting, ideal for direct connection up to 63 A. It measures imported active and imported reactive energy, with MID certification for imported active energy. Accuracy is assured by Class B (EN 50470-3) for active energy and Class 2 (IEC/EN 62053-23) for reactive, and a built-in RS485 port enables straightforward integration.

Engineered for reliability, the meter withstands a 6 kV impulse and has a rated insulation voltage of 250 V. It operates from -25 to +55 °C and up to 2000 m altitude, with storage down to -25 °C and up to +70 °C. Compliance includes EN50470-1, EN50470-3 and TR 50579, and the 148 g design fits neatly into control panels for sub‑metering and monitoring.

Key Benefits

• MID-certified imported active energy, suitable for billing and cost allocation.
• Class B active energy accuracy to EN 50470-3.
• Class 2 reactive energy accuracy per IEC/EN 62053-23.
• Direct connection up to 63 A simplifies wiring.
• DIN rail mounting for fast, space-efficient panel installation.
• Built-in RS485 communication port for remote integration.
• Wide operating range from -25 to +55 °C.
• 6 kV impulse withstand for enhanced surge immunity.

Technical Specification

• Product type designation: DMED121MID
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 148 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C
• Max altitude: 2000 m

What’s Included

• Lovato DMED121MID energy meter (single-phase)
• Installation leaflet
• Manufacturer warranty information

Applications

• Billing and cost allocation of imported active energy on single-phase circuits.
• Sub‑metering and monitoring of single-phase loads up to 63 A.
• DIN rail panel boards in commercial and light industrial installations.
• Remote data collection via RS485-enabled energy management systems.
• OEM control panels requiring compact, accurate single-phase metering.

Safety note: Installation should be performed by qualified personnel. Isolate power before work, observe local wiring regulations, and do not exceed the 63 A direct connection rating. Follow the manufacturer’s instructions.
