DMED120T1MID - 1PH 1O 63A PROGR. METER - MID CERTIFIED

Why Choose the DMED120T1MID?

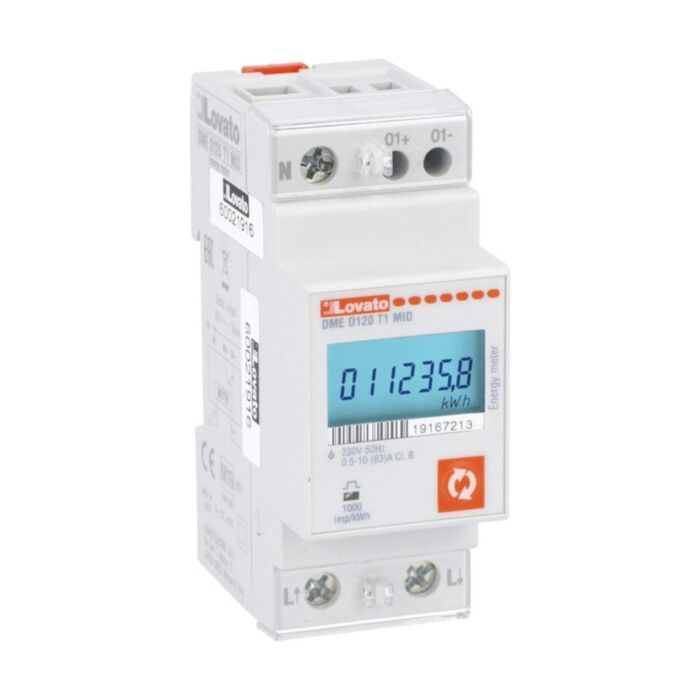

Lovato’s DMED120T1MID single-phase energy meter delivers reliable measurement in compact DIN rail format. With direct connection up to 63 A (Imax), it measures imported active energy and imported reactive energy. MID certification applies to imported active energy, with Class B accuracy (EN 50470-3); reactive energy is Class 2 (IEC/EN 62053-23). Rated insulation voltage is 250 V with 6 kV impulse withstand for robust performance.

Designed for straightforward panel integration, this energy meter mounts on DIN rail with direct connection and no built‑in communication port or expansion. It conforms to EN50470-1, EN50470-3 and TR 50579. Operating from -25 to +55 °C (storage -25 to +70 °C) and up to 2000 m altitude, the 148 g unit suits many single‑phase monitoring applications.

Key Benefits

• MID-certified imported active energy for compliant measurement and verification.
• Class B active energy accuracy per EN 50470-3 enhances confidence.
• Reactive energy to Class 2 per IEC/EN 62053-23.
• Direct connection up to 63 A Imax simplifies wiring.
• DIN rail mounting for compact, tidy panel installations.
• 250 V Ui and 6 kV Uimp for insulation and surge resilience.
• Broad -25 to +55 °C operating range, up to 2000 m altitude.

Technical Specification

• Product type designation: DMED120T1MID
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 148 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C
• Max altitude: 2000 m

What’s Included

• Lovato DMED120T1MID single-phase energy meter
• Printed safety and installation instructions
• Manufacturer’s documentation and conformity information

Applications

• Single-phase submetering for distribution boards
• Tenant or department energy allocation where MID is required for imported active energy
• Monitoring of dedicated circuits up to 63 A
• Retrofitting into DIN rail panels with direct connection

Safety note: Install and commission only by qualified personnel. Always isolate power before wiring, and follow applicable standards and the manufacturer’s instructions.
