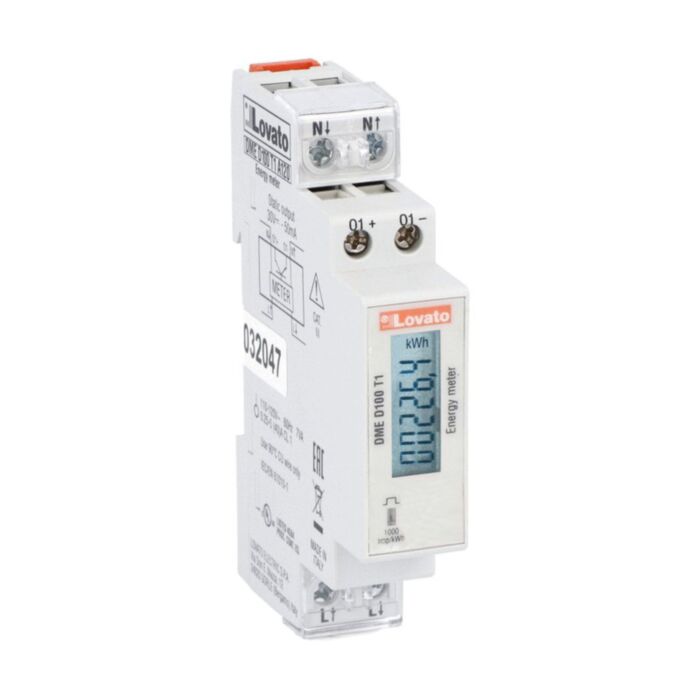

DMED100T1MID - 1PH 1O ENERGY METER 40A - MID CERTIFIED

Why Choose the DMED100T1MID?

Lovato’s DMED100T1MID is a single‑phase energy meter for DIN rail panels, designed to measure imported active energy with MID compliance. Class B accuracy to EN 50470‑3 and direct connection up to 40 A support reliable, billing‑grade sub‑metering. The unit simplifies installation for contractors and OEMs seeking consistent performance and straightforward wiring in residential, commercial and light industrial applications.

Engineered for durability, it offers 250 V rated insulation and 6 kV impulse withstand, and operates from −25 to +55 °C up to 2000 m altitude. Reactive energy compliance is Class 2 to IEC/EN 62053‑23. There’s no built‑in communication port, no harmonic analysis and no expansion, ensuring a focused, dependable meter. Conformity with EN50470‑1, EN50470‑3 and TR 50579 supports regulatory and documentation needs.

Key Benefits

• MID certified for imported active energy, Class B accuracy per EN 50470-3.
• Direct connection up to 40 A for straightforward installation.
• DIN rail mounting simplifies panel integration and retrofit work.
• Withstands 6 kV impulse, 250 V Ui for robust insulation performance.
• Operates -25 to +55 °C, suitable for varied environments.
• Reactive energy Class 2 per IEC/EN 62053-23 compliance.
• Standards conformity EN50470-1, EN50470-3, TR 50579 for assured compliance.
• Lightweight 86 g design eases handling and assembly.

Technical Specification

• Product type designation: DMED100T1MID
• Rated insulation voltage Ui (IEC/EN): 250 V
• Rated impulse withstand voltage Uimp: 6 kV
• Weight: 86 g
• Operating temperature: -25 to +55 °C
• Storage temperature: -25 to +70 °C
• Max altitude: 2000 m

What’s Included

• Lovato DMED100T1MID single-phase energy meter
• Quick start guide and safety information leaflet
• Manufacturer product datasheet (digital)

Applications

• Sub-metering of single-phase loads in commercial and residential properties
• Tenant billing where MID-certified imported active energy is required
• Light industrial circuits up to 40 A direct connection
• DIN rail distribution boards and retrofit panels
• Energy monitoring aligned with EN 50470-3 requirements

Safety note: Installation must be carried out by a qualified electrician. Isolate the supply before work, follow the specified operating limits and standards, and ensure correct DIN rail mounting and wiring.
